HAIHONG CTX8014 ELITE 1.4T YANMAR ENGINE PISTON PUMP 2 SPEED

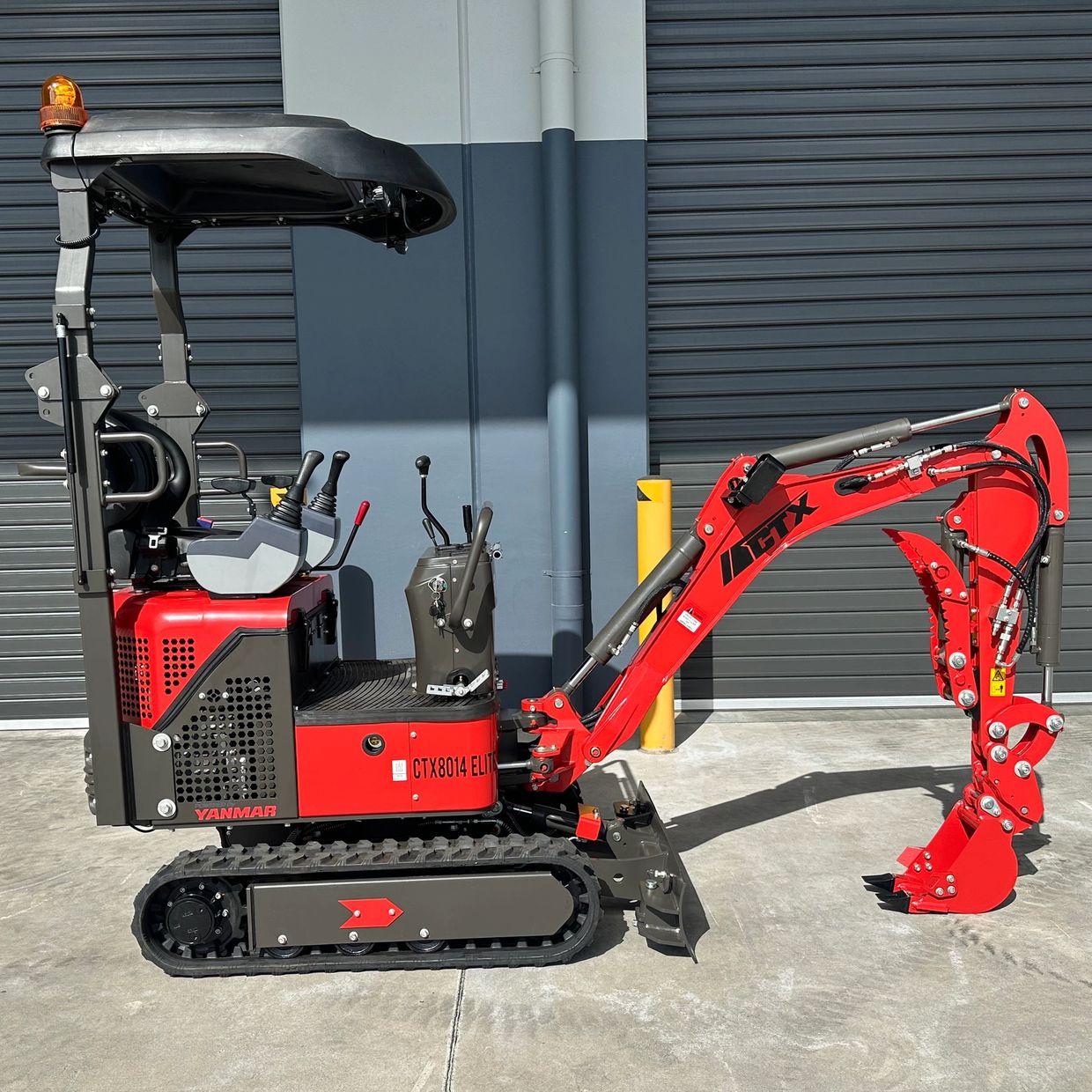

NEW HAIHONG CTX8014 ELITE MODEL - PREMIUM 1.4T CHINESE MINI EXCAVATOR
NEW ELITE MODEL FEATURES INCLUDE :
- 2 SPPED TRACKING 2.1 / 3.3 ( kM/h )
- NEW PISTON PUMP Hi-Flow / HI PRESSURE 39.6L/Min MAX OIL FLOW
- 1.9M DIGGING DEPTH
- DUAL AUXILIARY HYDRUALIC OUTLETS
- FOLDING TOPS PROTECTION BAR WITH HYDRAULIC STRUTS
- 52 DEGREE RIGHT AND LEFT SWING BOOM
- HYDRAULIC THUMB GRAB
- TAIFENG SOFT SHIFTING CONTROL VALVE
- KUBOTA STYLE BOOM
- YANMAR 3CYL INDUSTRIAL GRADE DIESEL ENGINE
- LARGER HYDRAULIC CYLINDERS
- INTERNAL MOUNTED HYDRAULIC HOSES
- 3 X TRACK ROLLERS
- STRONGER EXPANDABLE TRACKS ( 840MM - 1060MM )
- JOYSTICK HYDRAULIC PILOT CONTROLS FOR SMOOTHER OPERATION
- STRONGER ATTACHMENTS
- QUICK RELEASE COUPLINGS FOR HYDRAULIC GRAB / TILT BUCKET AND POST HOLE DIGGER
OPTIONAL ATTACHMENT PACKAGE :
- 200mm, 400mm, & 600mm Buckets
- 800mm Tilting Mud Bucket
- Spring Quick Hitch
- Ripper
- Hydraulic Thumb Grab
- Stick Rake
- Post Hole Digger with 200 & 300mm Heavy Duty Augers
EXTRA OPTIONAL ATTACHMENTS :
- 900mm Sieve Bucket
- Tilting Manual Quick Hitch ( 5 finger Grab cannot be used )
- Rock Breaker
- 8x5 / 10x5 / 12x7 Standard and Hydraulic Tipping Trailers
- 5 Finger Grab
Unlock Power and Performance with the New CTX8014 Elite!
The HAIHONG CTX8014 Elite is a next-generation 1.4 ton mini excavator designed for operators who demand more. Powered by a reliable Japanese Yanmar 3-cylinder diesel engine, it delivers exceptional efficiency and strength on every job site. With 2-speed tracking, adjustable tracks, and a precision swing boom, this model offers unmatched flexibility in tight spaces. The bucket digging force is a true measure of a mini excavator's digging power, and the HAIHONG CTX8014 Elite Mini Excavator, with a digging force of 1835KG / 18kN is a leader in the industry.
Built for durability and comfort, the CTX8014 Elite features extended rubber tracks for added stability, a fully protected hydraulic boom cylinder, and internally routed hydraulic hoses to minimise wear and tear. Operators will also appreciate the spacious platform and ergonomic seating, making long hours on the job easier and more productive.
Piston pumps are ideal for high-pressure, high-flow, and variable-displacement applications due to their precision, efficiency, and advanced control capabilities, making them a preferred choice in modern hydraulic systems such as the Haihong CTX8014 Elite Mini excavator. These pumps deliver variable flow essential for precise operations like boom and arm control, ensuring smooth, stable hydraulic flow even under heavy loads, which enhances the excavator's overall performance, durability, and operational efficiency.
SPECIFICATIONS
Model : CTX8014 ELITE
Manufacturer : SHANDONG HAIHONG HEAVY INDUSTRY CO.,LTD.
Brand : HAIHONG
Operating Weight : 1400kg
Digging bucket capacity : 0.025cbm/100kg
Bucket width : 200mm
Engine : JAPANESE YANMAR 3TNV74 3CYL DIESEL
Max Rated power : 21hp @ 3600rpm
Displacement : 0.85
Hydraulic pump : PISTON PUMP HI-FLOW
Pump Flow : 39.6L/min
Swing motor : Li Ke
Traveling motor : LKC
Travel speed : 2.1 / 3.3 km/h
Track rollers : 3
Hydraulic tank : 21L
Fuel Tank : 10L
MAIN DIMENSIONS
Overall dimension( LxWxH) : 2550 x 896 x 2170 mm
Wheelbase : 770 mm
Standard Track width : 860mm
Adjustable Track width : 840mm - 1060mm
Swing Boom angle : 52 degree left and right
Total length of track : 1300mm
Individual Track width : 180 mm
Chassis ground clearance : 144 mm
Track height : 320 mm
OPERATING RANGE
Max. Vertical digging depth : 1900 mm
Max. Digging height : 3124 mm
Max. Dumping height : 2174 mm
Max. Digging radius on ground : 2715 mm
Max. Digging depth of bulldozer blade : 227 mm
Bucket Digging Force : 18kN / 1835kg
* Specifications and Prices are subject to change without notice.
ELITE LEVEL PREMIUM FEATURES
- 2 SPEED TRACKING 2.1 / 3.3 ( Km/h )
Fast tracking from A to B.
- JAPANESE 3CYL YANMAR DIESEL ENGINE. Powerful, fuel efficiency, and low emissions.
- PISTON HYDRUALIC PUMP.
high-pressure, high-flow, precision, efficiency, and advanced control capabilities
- DUAL HYDRAULIC AUXILIARY OUTLETS. Individual hydraulic outlets with quick release couplings to operate attachments ( tilt bucket, post hole digger, rock breaker, thumb grab or tilting hitch )
- 1400KG OPERATING WEIGHT. Perfect weight to tackle all types of jobs.
- TAIFENG SOFT SHIFTING CONTROL VALVE. Smooth precise hydraulic movements.
- JOYSTICK DROP DOWN PILOT CONTROLS. Seat mounted joystick controls for comfort and enhanced productivity
- SWING BOOM. greater angles for closer digging to walls, foundations, fence lines etc
- ADJUSTABLE RUBBER TRACKS 840mm - 1060mm. Variable adjustment for tight access and better stability when working
- DELUXE WRAP AROUND OPERATORS SEAT. Comfort for long hours of operation
- EASY ACCESS TO ENGINE. One piece gas strut supported bonnet - maintenance friendly
- BATTERY ISOLATOR SWITCH. No more flat battery's
- SPACIOUS OPERATOR PLATFORM. Designed to provide easy on/off access with ample space and convenient grab handles for operators.
- LARGE DURABLE PLASTIC CANOPY. For protection from the elements
- STRONG FOLDING TOPS PROTECTION BAR WITH GRAB HANDLES. Safety first !
- WATCH DOG CONTROL PANNEL. Simple machine alert system.
- 200MM AND 300MM HEAVY DUTY AUGERS for tree planting and fence post
- LONGER RUBBER TRACKS for superior stability including 3 x track rollers.
- HYDRAULIC HOSES protected inside the boom
- CLEAR OFFSET BOOM ( Boom offset to right for operators optimal vision and Boom lift cylinder located on top of boom for protection.
- QUICK RELASE COUPLINGS for fast and easy hydraulic hose connection. No tools required.
- SPRING QUICK HITCH. Simple to fit and remove all attachments. No tools required.
- CANOPY FRONT AND REAR WORK LIGHTS & SAFETY STOP BUTTON
