RHINOCEROS XN18L

RHINOCEROS XN18L

NEW MODEL - NEW BOOM WITH MAIN HYDRAULIC CYLINDER LOCATED ON TOP ALSO A MASSIVE 2417MM DIGGING DEPTH !!

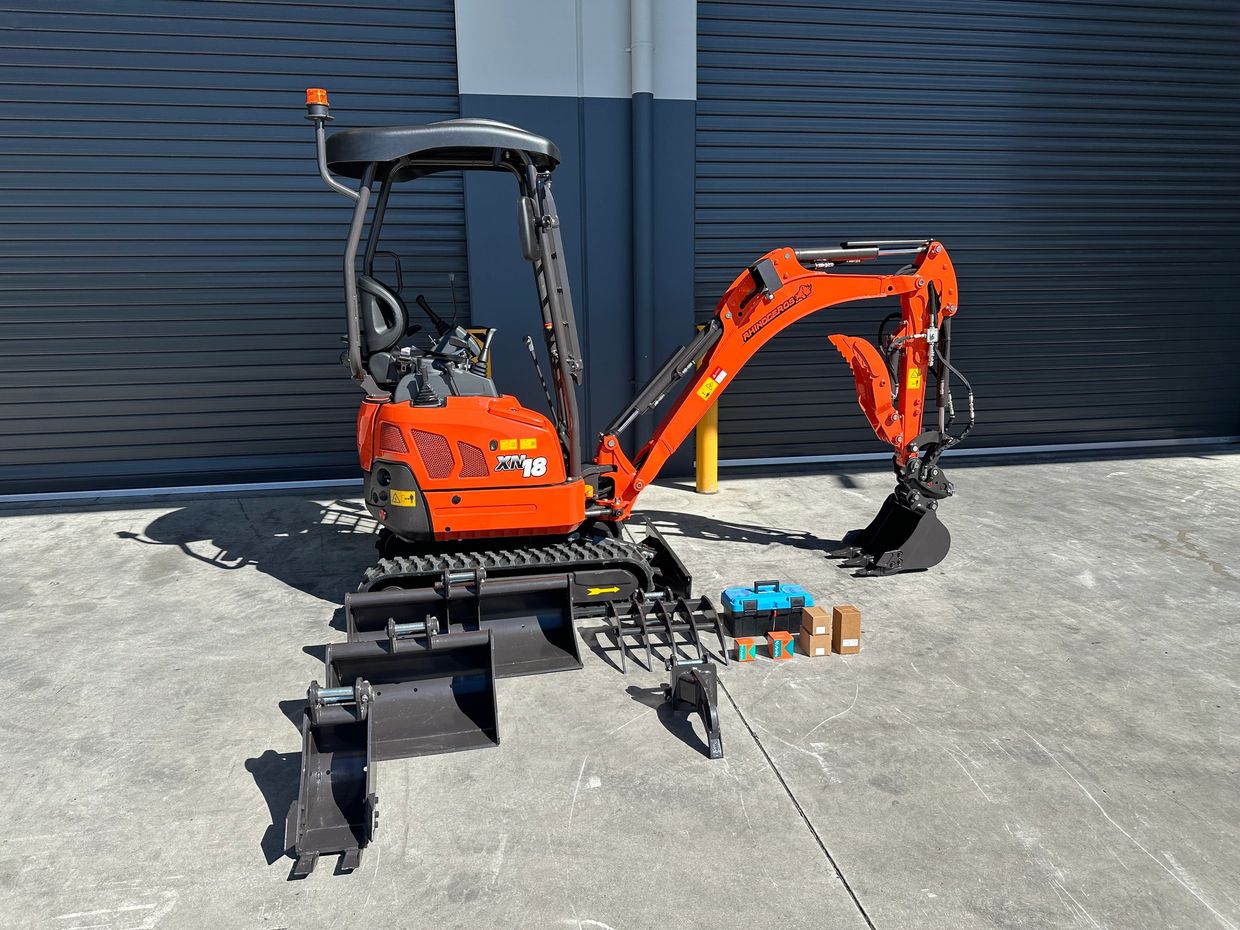

The Rhinoceros XN18L Mini Excavator is a versatile and compact machine weighing 1.8 tons, equipped with a Japanese Kubota D902 3cyl diesel engine, and features 2-speed tracking, hydraulic quick hitch as well as a new swing boom with main lifting hydraulic cylinder located on top . All hydraulic hoses are mounted inside the boom.

Its ergonomically designed seat mounted pilot control joysticks enhance comfort and precision, while the high-quality hydraulic system, including a constant variable piston pump and auxiliary output, allows for smooth operation and compatibility with various attachments such as post hole diggers, rock breakers and tilting mud buckets .

The swing boom and solid dozer blade further improve its capability to work in confined areas, making it an ideal choice for landscaping, excavation, and construction tasks.

Available Attachments :

- 200mm Trench Bucket

- 400mm GP Bucket
- 600mm GP Bucket

- 1000mm Mud Bucket
- Hydraulic Quick Hitch
- Ripper
- Rake
- Hydraulic Thumb Grab

Optional  Attachments and Trailers:

Plant Trailer 10x5 3.5T

Hydraulic Tipper 10x5 3.5T

Rock Breaker

 1000mm Tilting Mud Bucket

SPECIFICATION:

Model : XN18L

Manufacturer : SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD

Brand: RHINOCEROS

Operating Weight: 1800kg

Digging bucket capacity: 0.045cbm

Digging bucket width: 400mm

Engine: Kubota D902 3cyl diesel engine

Emissions Regulation: EPA Final Tier 4

Max Rated power: 23hp/3600rpm

Displacement: 0.898L

Bore stroke :  72mm x 73.6mm

Main pump : KDK Variable displacement piston pump

Working Pump flow : 39.6L/Min

Valve : BEIFANG

Displacement : 6.8ml/r

Swing motor : EATON USA

Traveling motor : EATON USA

Fuel tank capacity : 19L

MAIN DIMENSIONS

Overall dimension( LxWxH) : 2360x1150x2320mm

Total length of track  : 1450mm

Platform ground clearance : 440mm

Platform back turning radius : 790mm

Rubber Track only width : 230mm

Track height : 320mm

OPERATING RANGE

Max. Digging depth : 2417mm

Max. Vertical digging depth : 1740mm

Max. Digging height : 3275mm

Max. Dumping height : 2310mm

Max. Digging radius on ground : 3470 mm

Min. Rotation radius : 1440mm

Max. Upgrade height of bulldozer blade : 262mm

Max. Digging depth of bulldozer blade : 192mm

Bucket Digging Force : 13.5kN

ATTACHMENT PRICES :

XN18L 200mm Trench Bucket $400..............................

XN18L 400mm General Purpose Bucket $425......

XN18L 600mm General Purpose Bucket $450......

XN18L 1000mm Batter Bucket $550..............................

XN18L Digger inc 300mm Auger $2950.....................

XN18L Ripper $350.......................................................................

XN18L Rake $350...........................................................................

XN18L Log Grab $450..............................................................

XN18L 1000mm Tilting Mud Bucket $1450 ...................................

XN18L Rock Breaker $2950.................................................

30mm pins / 140mm pin centre / 108mm between ears

*prices inc gst
