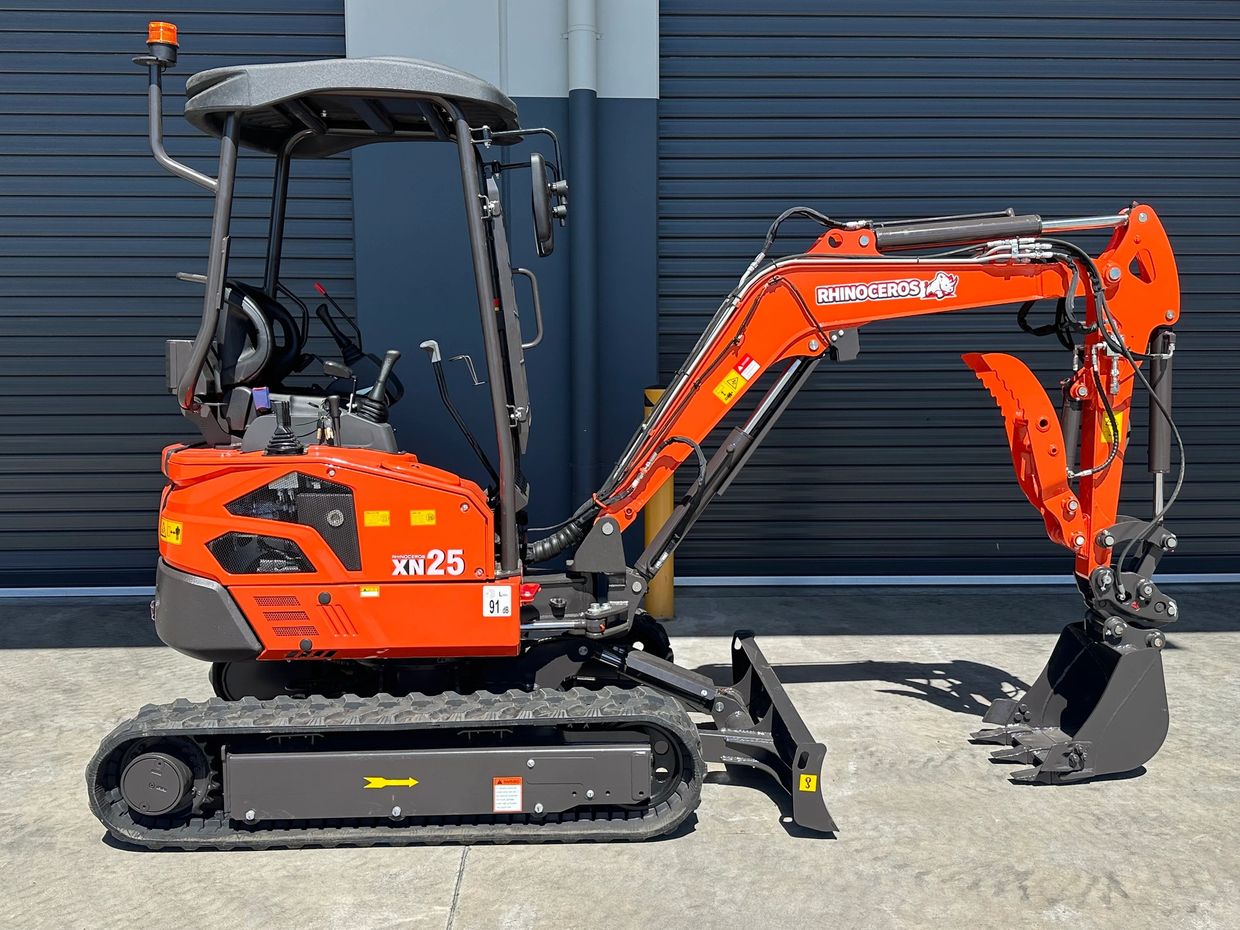

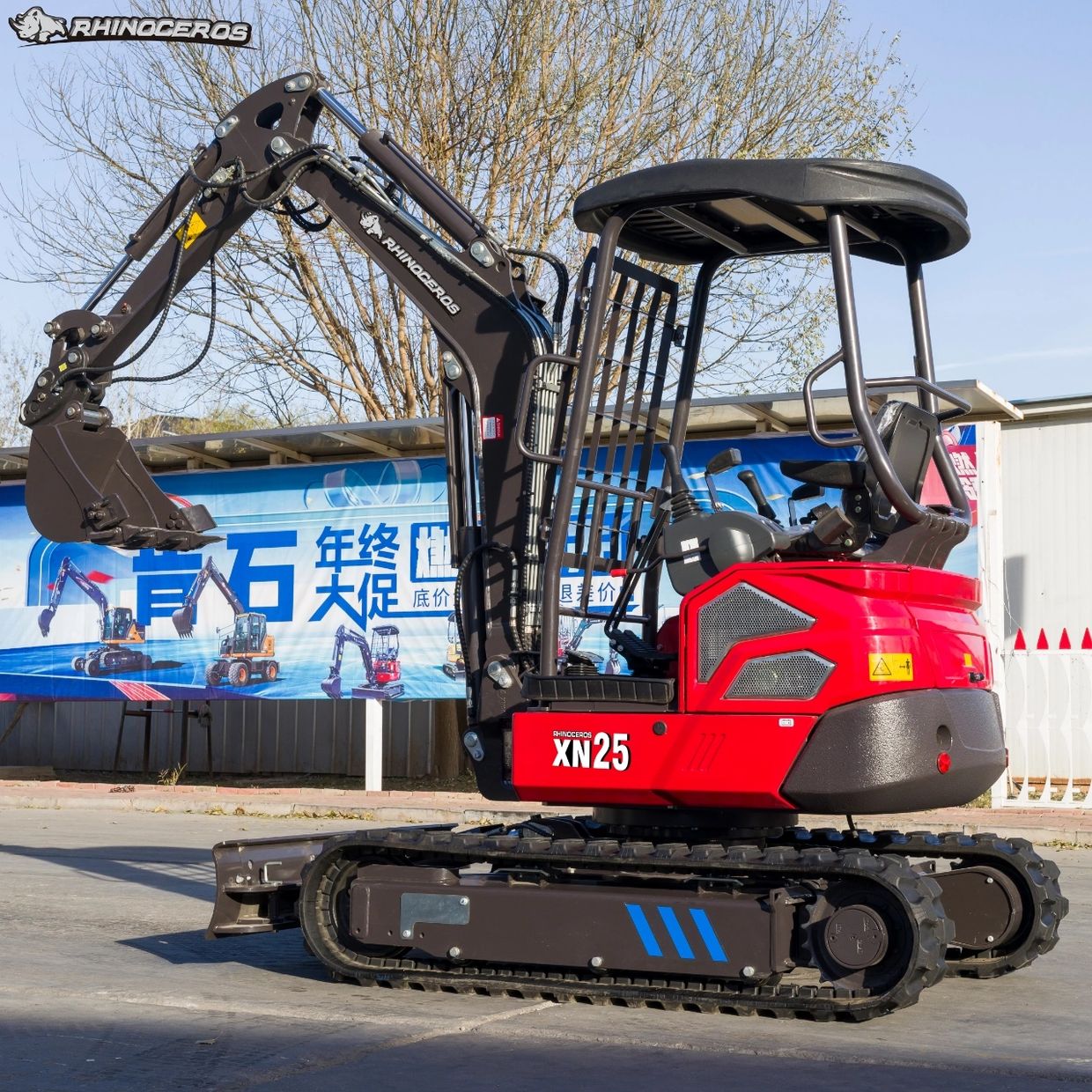

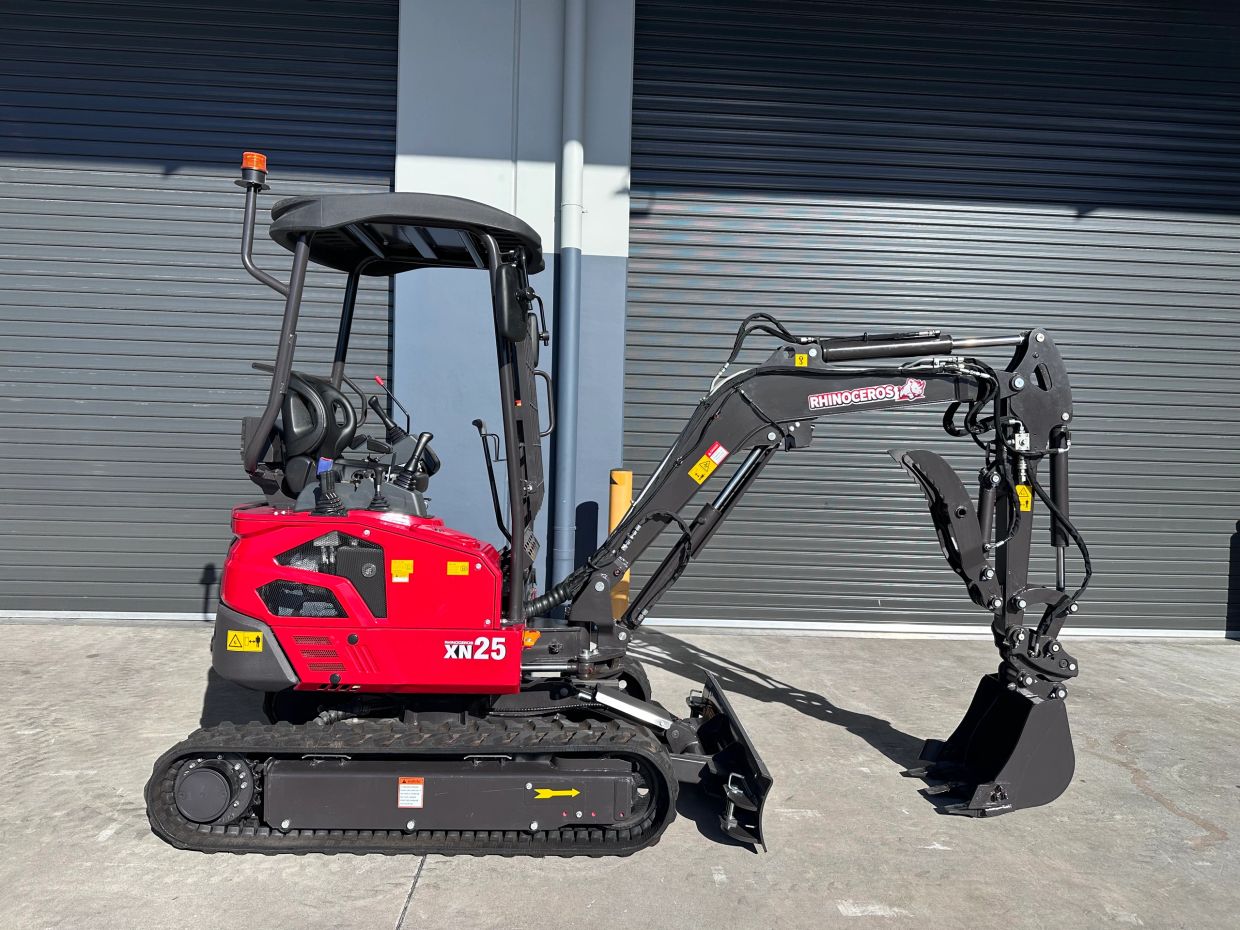

Rhinoceros XN25 Mini Excavator

Experience powerful performance and compact efficiency with the Rhinoceros XN25 Mini Excavator, ideal for contractors, landscapers, and property owners seeking reliability and versatility on every job.

• Engine: Kubota D1105 3cyl diesel, renowned for fuel efficiency and dependable operation
• Power: Rated at 14.2 kW to 16 kW (22 HP)
• Operating Weight: 2,500 kg
• Bucket Capacity: 0.04–0.05 m³ with rugged construction for tough digging conditions
• Digging Force: Powerful breakout capability, designed for clay, earthworks, and construction
• Maximum Digging Depth: Up to 2,396 mm for deeper trenches and foundations
• Maximum Reach: 4,210 mm
• Swing Boom: Standard for enhanced maneuverability around obstacles
• Travel Speed: 3.3/2.2 km/h dual-speed drive
• Expandable Chassis: Adaptable track width for improved stability and access in confined areas
• Dimensions: Overall height 2,440 mm, track length 1,892 mm, wheelbase 1,440 mm

The XN25 is built for tough environments—dig trenches, foundations, grading projects, drainage ditches, or landscaping with precision and minimal impact. Its compact footprint ensures it’s easy to transport and use on tight jobsites.

Boasting a globally trusted Kubota or Yanmar engine, the XN25 delivers low emissions and efficient power. The sturdy build and advanced hydraulics allow for smooth, precise movement for all digging and lifting needs.

• The reinforced four-post ROPS canopy provides crucial protection for the operator in case of a roll-over or accident, significantly reducing injury risk.
• A robust protective fence on the front side helps block flying debris, such as stones, during operation.
• The excavator features a solid counterweight at the rear to enhance stability, reducing the chance of tipping even on uneven terrain.
• Safety locks and secure controls prevent accidental movements during maintenance and while the machine is not in use.
• The XN25 is built to international safety standards, including CE and EPA certifications, supporting safer operation on professional job sites.

• The operator seat is ergonomically designed for long shifts, offering enhanced lumbar support and adjustability for optimal comfort.
• Pilot hydraulic controls enable precise, effortless machine operation, reducing fatigue and boosting overall productivity.
• The engine and machine components are designed to minimize noise and vibration, creating a quieter and more comfortable cabin environment.
• The spacious layout of the operator’s area allows freedom of movement and easy access to controls, ensuring comfort and efficiency throughout the workday.

• Heavy-duty reliability for daily construction and landscape tasks
• Compact size with high-end performance for small spaces
• Simple operation, low maintenance, and strong after-sales support

Upgrade your worksite with the Rhinoceros XN25 Mini Excavator—a compact powerhouse built to deliver years of trouble-free service.

The Rhinoceros Company takes pride in only suppling the best quality mini excavators and understands the importance of after sales service. Happy Customers for the long term is the motto.

Buying a Rhinoceros XN25 can save you thousands of dollars compared to a name-brand mini excavator, offering comparable performance and durability at a more affordable price—so why pay more for a well-known brand when you can get the same quality for less?

Optional Attachments :

- 200mm Trench Bucket

- 300mm GP Bucket
- 400mm GP Bucket

- 1000MM Mud Bucket

- 1000mm Tilting Mud Bucket

- 1000mm Sieve Bucket
- Hydraulic Quick Hitch
- Ripper
- Rake
- Hydraulic Thumb
- Filter set and tool box

- Rock Breaker

- Auger Drive

SPECIFICATION:

Model : XN25

Manufacturer : SHANDONG   RHINOCEROS ENGINEERING MACHINERY CO.,LTD

Brand RHINOCEROS

Operating Weight : 2500kg

Engine : Kubota D1105

Emissions Regulation : EPA Final Tier 4

Max Rated power : 25hp/3000rpm

Displacement : 1.123L

Bore stroke :  78mm x 78.4mm

Working Pump flow : 61.6L/Min

Operating Pressure : 22Mpa

Max. Travel Speed : 2.2/3.3km/h

Swing Speed : 10.5rpm

Fuel tank capacity : 22L

Hydraulic oil tank capacity : 16.3L

Max. Grade Ability : 30 Degree

MAIN DIMENSIONS

Overall Height : 2585mm

Wheel Base : 1440mm

Transport Length : 3918mm

Total length of track  : 1892mm

Platform ground clearance : 545mm

Platform back turning radius : 885mm

Standard rubber track width :  1130mm

Adjustable rubber track  width : 1140mm - 1454mm

Rubber Track only width : 250mm

Track height : 455mm

Chassis ground clearance : 460mm

Platform Ground Clearance : 545mm

Platform Back Turning Radius : 885mm

OPERATING RANGE

Max. Digging depth : 2396mm

Max. Vertical digging depth : 2093mm

Max. Digging height : 4153mm

Max. Dumping height : 2909mm

Max. Digging radius on ground : 4168 mm

Min. Rotation radius : 1857mm

Max. Upgrade height of bulldozer blade : 257mm

Max. Digging depth of bulldozer blade : 413mm
