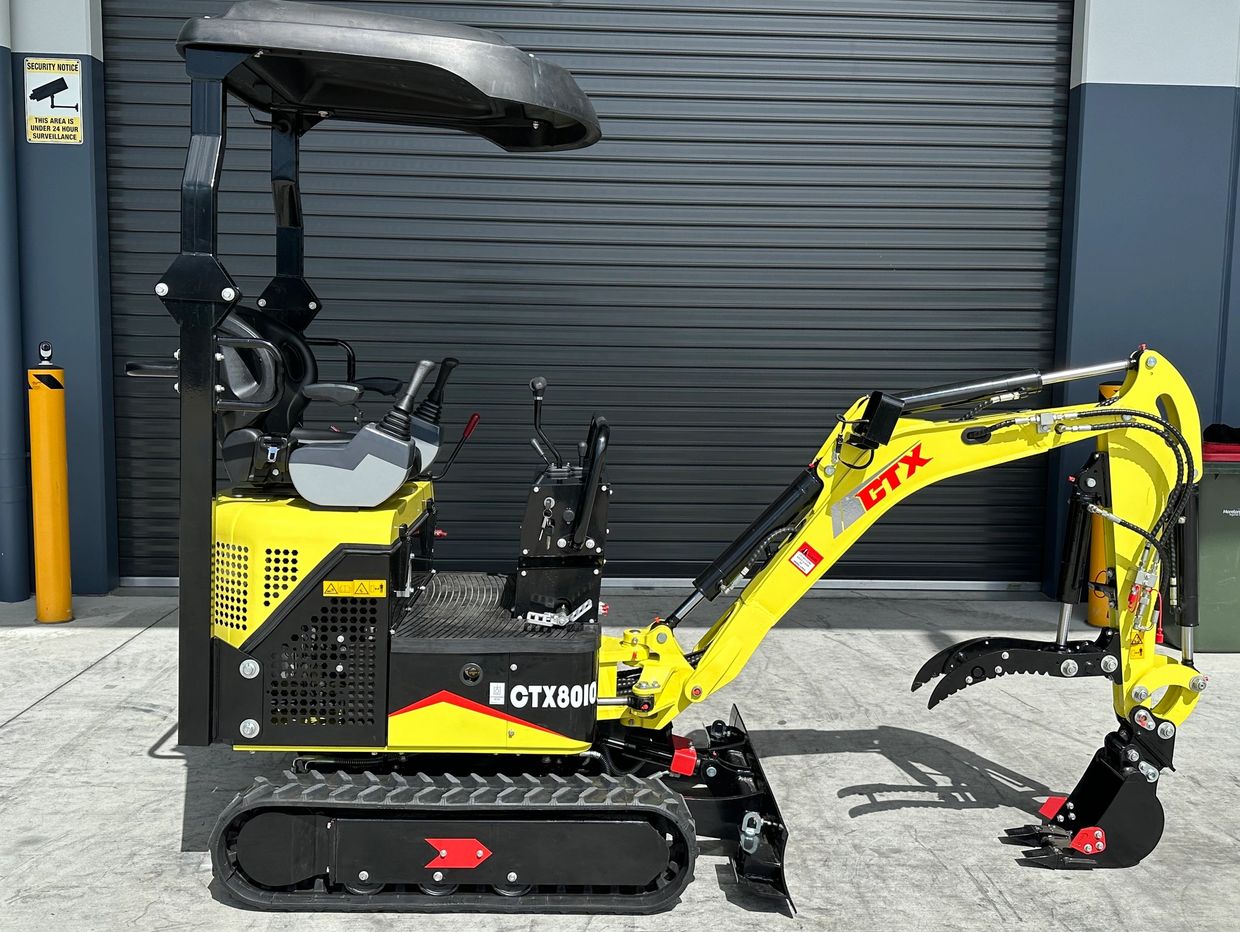

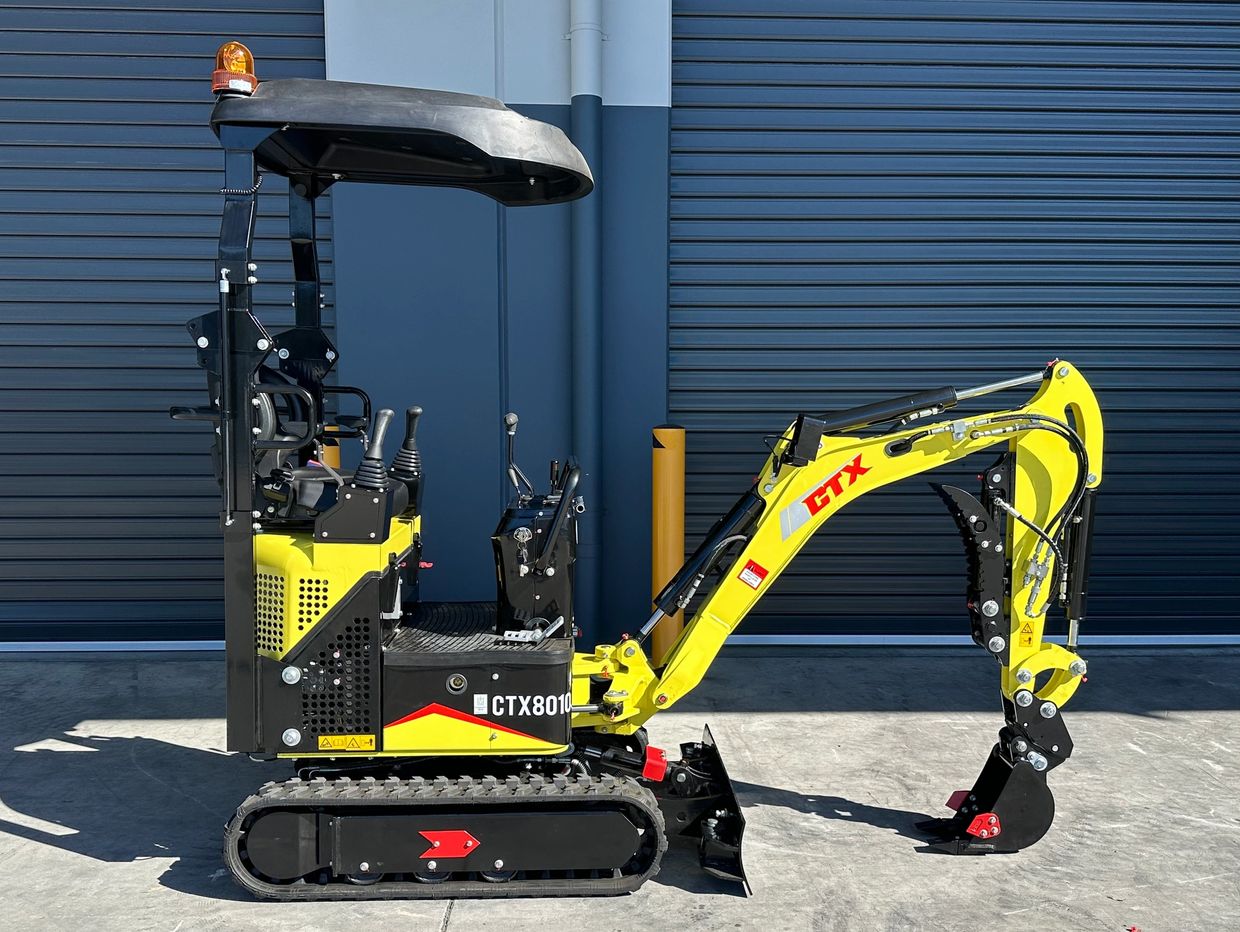

HAIHONG CTX8010 1.2T KOOP DIESEL

HAIHONG CTX8010 1.2T 1CYL KOOP DIESEL ENGINE


 " INDUSTRY LEADING MAX DIGGING DEPTH - 1943MM "


 " SEAT MOUNTED DROP DOWN JOYSTICK PILOT CONTROLS "


 " SWING BOOM AND ADJUSTABLE TRACKS "


" OFFSET BOOM FOR SUPERIOR OPERATOR VISION "


" 2 X AUXILARY HYDRUALIC REMOTES


"  1CYL KOOP DIESEL ENGINE "


" 3 X RUBBER TRACK ROLLERS "


" LARGE OPERATORS PLATFORM "


" 6 YEARS IN THE AUSTRALIA "


OPTIONAL  ATTACHMENTS :

- 200mm, 400mm, & 600mm Buckets

- 800mm Tilting Mud Bucket

- 900mm Sieve Bucket

- Spring Quick Hitch

- Ripper

- Hydraulic Thumb Grab

- Stick Rake

- 5 Finger Grab

- Post Hole Digger with 200 & 300mm Heavy Duty Augers

- Tilting Quick Hitch


The HAIHONG CTX8010 is the Premium 1.2 ton mini excavator that has all the extra features that sets it apart from the rest. Adjustable tracks and swing boom, longer rubber tracks, protected hydraulic boom cylinder, Hydraulic hoses protected inside the boom, quick release couplings and large operators space are just some of the quality features that make this machine perform like no other. The HAIHONG CTX8010 is a quality solid machine with an over engineered chassis, boom and foldable roll bar with large canopy that will protect you from the sun.


The HAIHONG CTX8010 is the ideal machine to do all types of jobs such as : Landscaping, Concrete Shed Pad Preparation, Fencing, Cleaning out Dams and Ponds, Planting Trees, Laying Pipes and Power Cables, Footings, Construction Work, Clearing Over Grown Land, Motor Bike Tracks, Moving Logs and Large Rocks, Removing Stumps, Blade Work for Tracks and Paths, Small Acreage Maintenance, Gardening - The List is Endless ...........


Put your wheel burrow, pick and shovel away and let the HAIHONG CTX8010 do the work for you.

It is easy to operate and will save you money, time and most importantly save your Back !


SPECIFICATIONS

Model : CTX8010

Manufacturer : SHANDONG HAIHONG HEAVY INDUSTRY CO.,LTD.

Brand : HAIHONG

Operating   Weight : 1200kg

Seat Mounted Joystick Controls

Digging bucket   capacity : 0.025cbm/100kg

Bucket width : 340mm

Engine : KOOP

Rated power : 12HP@3600RPM

Displacement : 0.499 L

Bore stroke : 70x55

Main pump : CBK-F6.8

Pump Flow  : 16L/min

Swing motor : SANYANG DMRS-200

Traveling motor : SANYANG 310

Travel speed : 2.2km/h




MAIN DIMENSIONS

Overall dimension( LxWxH) : 2550 x 896 x 2170 mm

Wheelbase : 770 mm

Adjustable Track width :  842mm - 1060mm

Swing Boom angle : 52 degree

Total length of track : 1300mm

Individual Track width : 180 mm

Chassis ground clearance : 132 mm

Track height : 320 mm



OPERATING   RANGE

Max. Vertical digging depth : 1900 mm

Max. Digging height : 2925 mm

Max. Dumping height : 2034 mm

Max. Digging radius on ground : 2703 mm

Max. Digging depth of bulldozer blade : 170 mm

Bucket Digging Force : 10.5kN


* Specifications and Prices are subject to change without notice.


MID LEVEL PREMIUM FEATURES

- SWING BOOM  greater angles for closer digging to walls, foundations, fence lines etc


- ADJUSTABLE RUBBER TRACKS 860mm - 1050mm  variable adjustment for tight access and better stability when working


- DELUXE OPERATORS SEAT  comfort for long hours of operation


- EASY ACCESS TO ENGINE  gas strut bonnet, maintenance friendly


- BATTERY ISOLATOR SWITCH  no more flat battery's


- LARGE OPERATOR PLATFORM  easy on/off with ample space and grab handles for easy access


- LARGE DURABLE PLASTIC CANOPY  for protection from the elements


- DIESEL ENGINE  economical and powerful


- STRONG FOLDING PROTECTION BAR WITH GRAB HANDLES safety first !


 - OIL AND BATTERY warning lights including battery voltage and hour meter


- 200MM AUGER for tree planting and fence post. 300MM AUGERS for larger holes.


- LONGER RUBBER TRACKS for superior stability


- HYDRAULIC HOSES protected inside the boom


- Quick release connectors for fast and easy connection of hydraulic attachments ( Tilt bucket and Post Hole Digger )


- Spring Quick Hitch - no tools required


HAIHONG

HAIHONG CTX8010 KOOP WALK AROUND VIDEO

HAIHONG CTX8010 KOOP PROMOTIONAL VIDEO

PDF Viewer

Haihong CTX8010 Specifications

Download PDF

Photo Gallery

    SHANDONG HAIHONG HEAVY INDUSTRY CO.,LTD.
