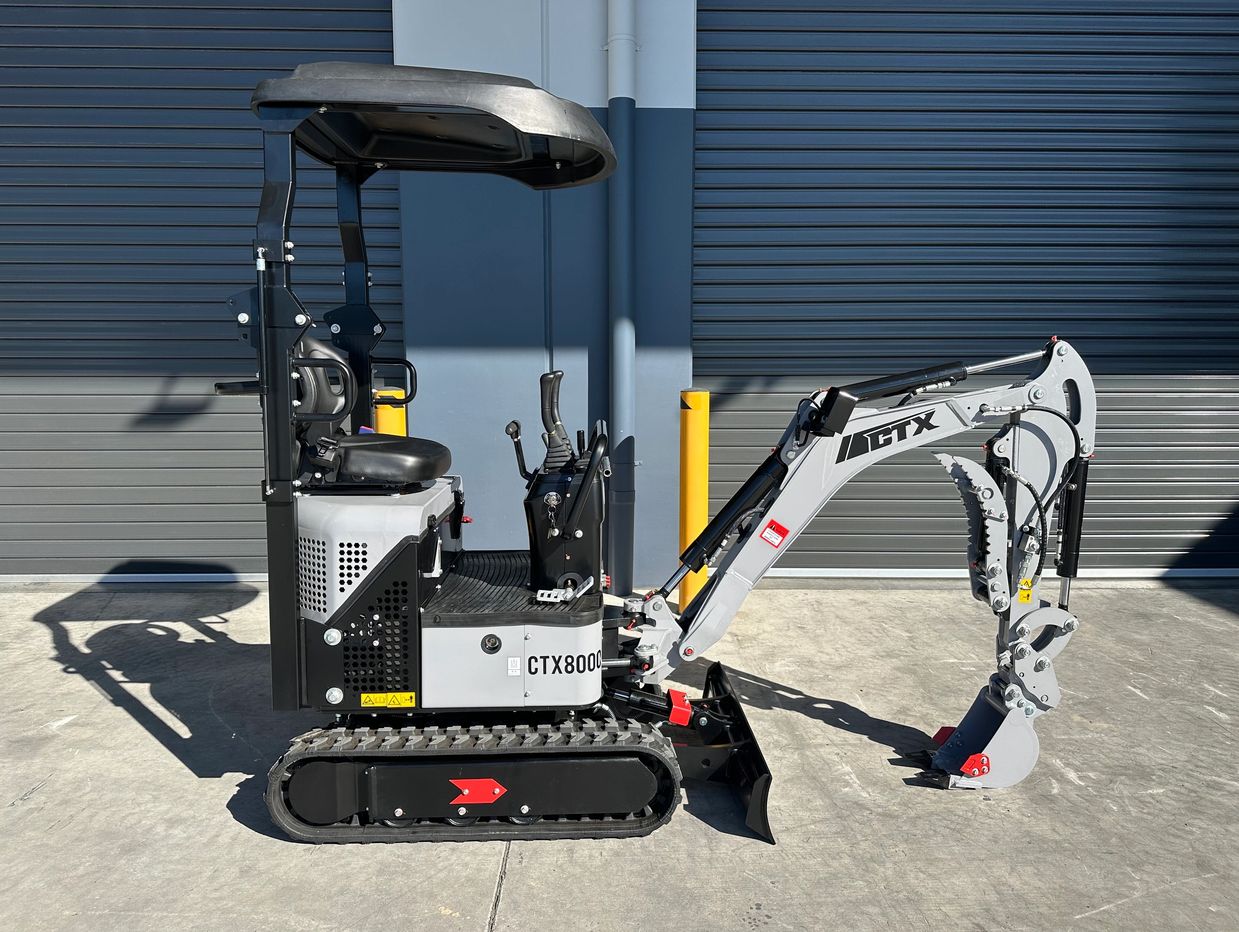

HAIHONG CTX8000 1.1T 1CYL KOOP DIESEL ENGINE
" INDUSTRY LEADING MAX DIGGING DEPTH - 1900MM "
" SWING BOOM "
" OFFSET BOOM FOR SUPERIOR OPERATOR VISION "
" 1CYL KOOP DIESEL ENGINE "
" 3 X RUBBER TRACK ROLLERS "
" LARGE OPERATORS PLATFORM "
" 6 YEARS IN THE AUSTRALIA MARKET "
OPTIONAL ATTACHMENTS :
- 200mm, 400mm, & 600mm Buckets
- 800mm Tilting Mud Bucket
- 900mm Sieve Bucket
- Spring Quick Hitch
- Ripper
- Hydraulic Thumb Grab
- Stick Rake
- Post Hole Digger with 200 & 300mm Heavy Duty Augers
- Tilting Quick Hitch
The HAIHONG CTX8000 is an entry level mini excavators offer versatility and robust features ideal for a wide range of tasks, from landscaping and construction to maintenance and clearing. With enhancements like swing boom and a protective hydraulic system, these machines ensure superior performance and durability. Their spacious operator area and added safety features, such as a foldable roll bar, make them not only efficient but also comfortable for prolonged use, catering to both hobby farmers and DIY enthusiasts alike.
SPECIFICATIONS
Model : CTX8000
Manufacturer : SHANDONG HAIHONG HEAVY INDUSTRY CO.,LTD.
Brand : HAIHONG
Operating Weight : 1100kg
Digging bucket capacity : 0.025cbm/100kg
Engine : KOOP
Rated power : 12HP@3600RPM
Displacement : 0.499 L
Bore stroke : 70x55
Main pump : CBK-F6.8
Pump Flow : 16L/min
Swing motor : SANYANG DMRS-200
Traveling motor : SANYANG 310
Travel speed : 2.2km/h
MAIN DIMENSIONS
Overall dimension( LxWxH) : 2550 x 1060 x 2170 mm
Wheelbase : 770 mm
Track width : 1060mm
Swing Boom angle : 52 degree
Total length of track : 1300mm
Individual Track width : 180 mm
Chassis ground clearance : 132 mm
Track height : 320 mm
OPERATING RANGE
Max. Vertical digging depth : 1900 mm
Max. Digging height : 2925 mm
Max. Dumping height : 2034 mm
Max. Digging radius on ground : 2703 mm
Max. Digging depth of bulldozer blade : 170 mm
Bucket Digging Force : 10.5kN
* Specifications and Prices are subject to change without notice.
- SWING BOOM greater angles for closer digging to walls, foundations, fence lines etc
- DELUXE OPERATORS SEAT comfort for long hours of operation
- EASY ACCESS TO ENGINE gas strut bonnet, maintenance friendly
- BATTERY ISOLATOR SWITCH no more flat battery's
- LARGE OPERATOR PLATFORM easy on/off with ample space and grab handles for easy access
- LARGE DURABLE PLASTIC CANOPY for protection from the elements
- DIESEL ENGINE economical and powerful
- STRONG FOLDING PROTECTION BAR WITH GRAB HANDLES safety first !
- OIL AND BATTERY warning lights including battery voltage and hour meter
- 200MM AUGER for tree planting and fence post. 300MM AUGERS for larger holes.
- LONGER RUBBER TRACKS for superior stability
- HYDRAULIC HOSES protected inside the boom
- Quick release connectors for fast and easy connection of hydraulic attachments ( Tilt bucket and Post Hole Digger )
- Spring Quick Hitch - no tools required
