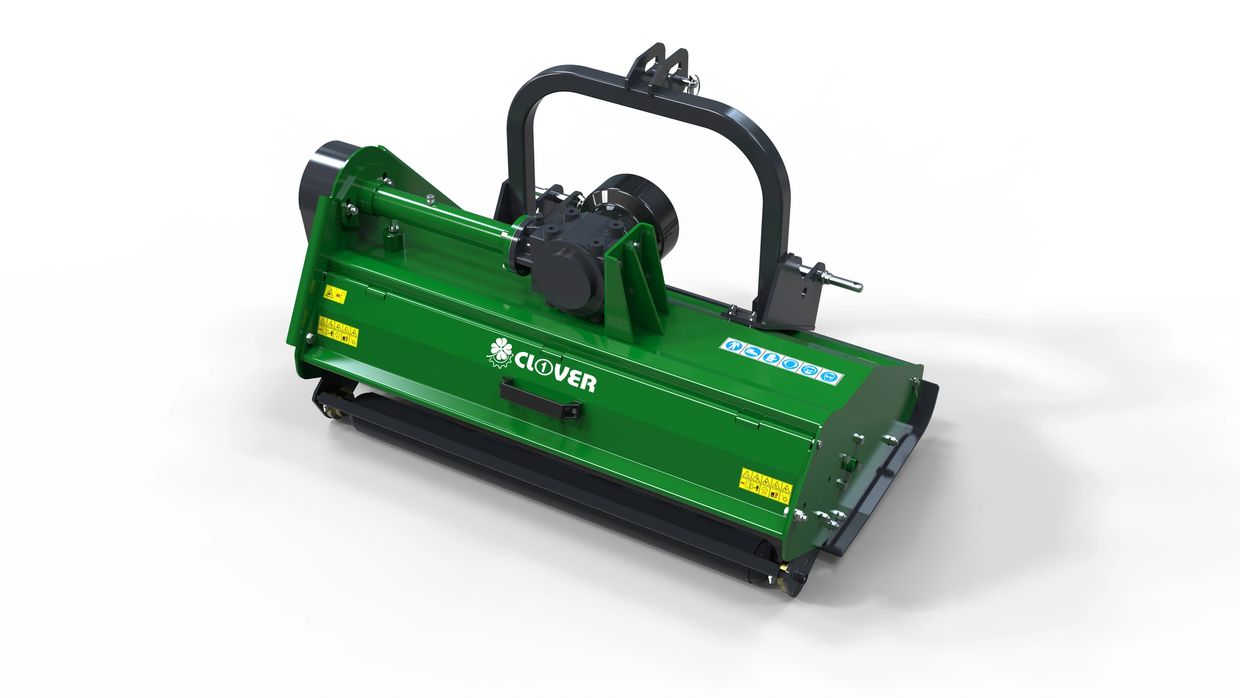

CLOVERAGRI VFLAM MEDIUM DUTY FLAIL / MULCHER - Manual side shift

The quality robust construction of the VFLAM series medium duty flail / mulcher mowers with manual side shift makes it stand out from its competitors. Special reinforced angular gearbox, heavy drive shaft and hammer blades with rear open bonnet are just some of the outstanding features.

Manual side shift means you don't need rear hydraulic remotes to side shift / offset the mower. A simple and easy to use manual handle to position the mower exactly where you want it.

The VFLAM  flail / mulcher series is well suited to compact tractors ranging from 18hp to 60hp. The VFLAM  Flail / Mulcher series is available in 3 sizes :  1250mm, 1550mm and 1750mm.

# Flail / Mulcher mower advantage over a slasher is

1. Manoeuvrability

2. Superior finish ( no windrows )

3. Better rejuvenation of the pasture.

The Modern design and technology of a flail / mulcher is fast replacing the old traditional Slasher. The safety is also improved with a flail / mulcher as all pasture is cut inside the main body and only discharged as finer less dangerous clippings.

All VFLAM flail / mulcher series are driven using a supplied P.T.O shaft via the tractors rear mounted Power Take Off ( PTO ) being offset to the right hand side of the tractor allows the mulcher / mower to easily cut close to fence lines or under trees.

Due to the open rear bonnet, maintenance work or changing hammer blades is easy accessible.   Please be informed that the bonnet has to be closed while operating.

This mower unit has the most heavy-duty gearbox in its class. Unlike mower units equipped with light Y blades, this mower has high inertia generated by the heavy hammer blades and heavy shaft. This allows the VFLAM series to perform better.

The specially hardened, 0.8 kg hammer blades, which are arranged on a double spiral drive shaft, shred clippings to a minimum size. Even very high grass, bushy or straw-like clippings are no problem for this mower!


The mulcher additionally has a trailing roller and a freewheel gearbox. The cutting height can be set with the adjustable roller and side mounted skids. The suspended, galvanised safety covers at the front of the mower unit prevents stones or other foreign objects escaping.

VFLAM125 Specifications:

• Length: 1370 mm
• Width: 920 mm
• Mowing width: 1250 mm
• Weight: 279 kg
• P.T.O shaft Included
• Rpm: 540
• drive shaft Ø: 100 mm
• trailing roller Ø: 95 mm
• Drive: 3 piece drive belt
• Hammer blades: 20
• Dimensions of packaging: 1520x830x610 mm (L x W x H)
• Mounting: three point hitch from Cat. I
• Recommended Tractor HP:  18-35HP
• Maximum cutting diameter 20mm - 30mm
• Cutting height 10mm - 60mm
• Adjustable Cutting height: 10mm - 60mm
• Includes spare set of hammers and drive belts

VFLAM155 Specifications:

• Length: 1670 mm
• Width: 920 mm
• Mowing width: 1550 mm
• Weight: 306 kg
• P.T.O shaft Included
• Rpm: 540
• drive shaft Ø: 100 mm
• trailing roller Ø: 95 mm
• Drive: 3 piece drive belt
• Hammer blades: 24
• Dimensions of packaging: 1720x830x610 mm (L x W x H)
• Mounting: three point hitch from Cat. I
• Recommended Tractor HP:  25-40HP
• Maximum cutting diameter 20mm - 30mm
• Adjustable Cutting height: 10mm - 60mm
• Includes spare set of hammers and drive belts

VFLAM175 Specifications:

• Length: 1870 mm
• Width: 920 mm
• Mowing width: 1750 mm
• Weight: 324 kg
• P.T.O shaft Included
• Rpm: 540
• drive shaft Ø: 100 mm
• trailing roller Ø: 95 mm
• Drive: 3 piece drive belt
• Hammer blades: 28
• Dimensions of packaging: 1920x830x610 mm (L x W x H)
• Mounting: three point hitch from Cat. I
• Recommended Tractor HP:  35-60HP
• Maximum cutting diameter: 20mm - 30mm
• Adjustable Cutting height: 10mm - 60mm
• Includes spare set of hammers and drive belts

Note:

The mower unit is delivered in a steel crate. The gearbox may be dry and must be checked/filled with oil (80W90, approx. 1 litre) PTO shaft to be greased prior to use.

Cloveragri only supply's Quality Implements with the best Welding, Hydraulics, Paint and Design giving 100% product satisfaction. Please don't get caught out with inferior quality that may cost you double in the long run. 2 YEAR WARRANTY.
