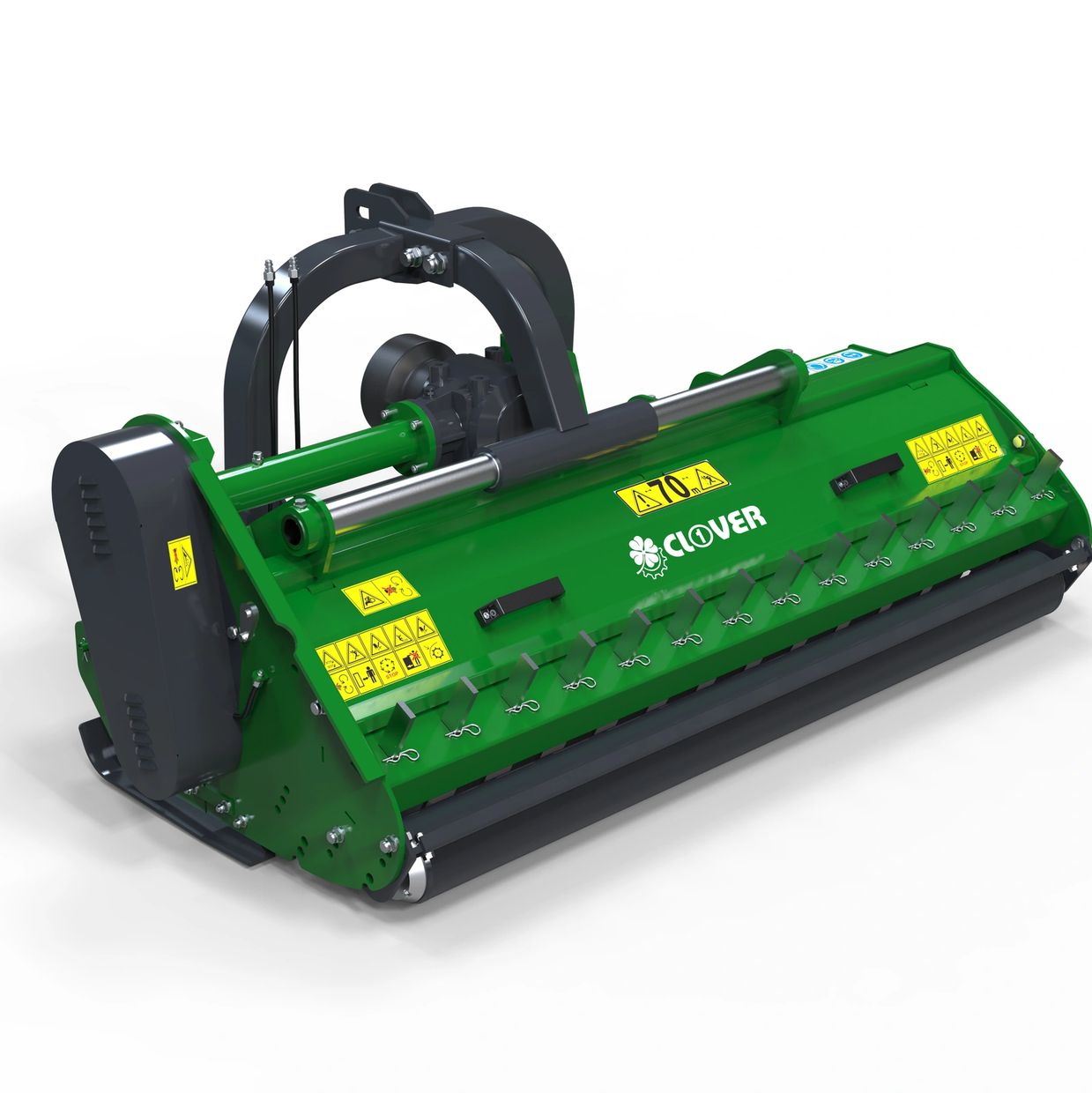

The quality robust construction of the Cloveragri Heavy Duty Mulcher Mower Series makes them stand out from its competitors. Heavy duty special reinforced angular gearbox, heavy duty drive shaft and hammer blades with rear open bonnet are just some of the outstanding features.
The heavy duty mulcher series is well suited to farm tractors from 60hp upwards.
A mulcher mower advantage over a slasher is :
1. Maneuverability
2. Superior finish ( no windrows )
3. Better rejuvenation of the pasture.
The Modern design and technology of a mulcher is fast replacing the old traditional Slasher. The safety is also improved with a mulcher as all pasture is cut inside the main body and only discharged as finer less dangerous clippings.
The heavy duty mulcher series are driven using a supplied P.T.O shaft via the tractors rear mounted Power Take Off ( PTO ). Being offset to the right hand side of the tractor allows the mulcher / mower to easily cut close to fence lines or under trees.
Due to the open rear bonnet, maintenance work or changing hammer blades is easily accessible. Please be informed that the bonnet has to be closed while operating.
The specially hardened, 1.2 kg hammer blades, which are arranged on a double spiral drive shaft, shred clippings to a minimum size. Even very high grass, bushy or straw-like clippings are no problem for this mower!
The mulcher additionally has a trailing roller and a freewheel gearbox. The cutting height can be set with the adjustable roller and side mounted skids. The suspended, galvanized safety covers at the front of the mower unit prevents stones or other foreign objects escaping.
Hydraulic side shift comes standard on the VMZ and VD models. By using the hydraulic side shift function the mulcher can be moved to both left and right. For this function you need a hydraulic control circuit on your tractor, as the mower unit has a double-action hydraulic cylinder for this purpose.
The RMZ Verge Mulcher have a strong three-point hanger that provides even more stability. Through lateral alignment of the mowing unit, you can mow ditches, bank areas, under trees, etc., with ease.
The heavy duty mulcher series are available in 3 different models - VMZ, RMZ and VD
VMZ190 Specifications:
- Length: 2050 mm
- Width: 1050 mm
- Mowing length: 1900 mm
- Weight: 640 kg
- P.T.O shaft Included
- Rpm: 540
- Blade Shaft Ø: 168 mm / 10mm thickness
- trailing roller Ø: 150 mm
- Hammer Blades : 18 pieces
- Drive: 5 piece b section drive belt
- Dimensions of packaging: 2050x1100x950 mm (L x W x H)
- Mounting: three point hitch from Cat. 2
- Tractor: min. 60HP
- Deck thickness : 5mm Double skinned
- Side Wall thickness : 10mm
- Rakes ( removable ) : 14 pieces
- Skid thickness : 8mm
VMZ220 Specifications:
- Length: 2350 mm
- Width: 1050 mm
- Mowing length: 2200 mm
- Weight: 725 kg
- P.T.O shaft Included
- Rpm: 540
- Blade Shaft Ø: 168 mm / 10mm thickness
- trailing roller Ø: 150 mm
- Hammer Blades : 20 pieces
- Drive: 5 piece b section drive belt
- Dimensions of packaging: 2450x1100x950 mm (L x W x H)
- Mounting: three point hitch from Cat. 2
- Tractor: min. 70HP
- Deck thickness : 5mm double skinned
- Side Wall thickness : 10mm
- Rakes ( removable ) : 14 pieces
- Skid thickness : 8mm
VMZ240 Specifications:
- Length: 2550 mm
- Width: 1050 mm
- Mowing length: 2400 mm
- Weight: 769 kg
- P.T.O shaft Included
- Rpm: 540
- drive shaft Ø: 168 mm / 10mm thickness
- trailing roller Ø: 150 mm
- Hammer Blades : 22 pieces
- Drive: 5 piece b section drive belt
- Dimensions of packaging: 2650x1100x950 mm (L x W x H)
- Mounting: three point hitch from Cat. 2
- Tractor: min. 80HP
- Deck thickness : 5mm Double skinned
- Side Wall thickness : 10mm
- Rakes ( removable ) : 16 pieces
- Skid thickness : 8mm
RMZ220 VERGE Specifications:
- Mowing Length: 2200mm
- Weight: 750 kg
- P.T.O shaft Included
- Drive belt: 4 pieces
- Rpm: 540
- Blade Shaft Ø: 152 mm / 10mm thickness
- trailing roller Ø: 150 mm
- Hammer Blades : 20 pieces
- Drive: 4 piece b section drive belt
- Dimensions of packaging: 2680x1060x810 mm (L x W x H)
- Mounting: three point hitch from Cat. 2
- Tractor: min. 80HP
- Deck thickness : 5mm Doubled Skinned
- Side Wall thickness : 8mm
- Rakes ( removable ) : 14 pieces
- Skid thickness : 8mm
VD220 Specifications:
- Mowing width: 2170 mm
- Hydraulic Side-Shift
- Weight: 570 kg
- P.T.O: included
- Drive belt: 4 piece b section drive belt
- Blade Shaft Ø: 152 mm / 8mm thickness
- trailing roller Ø: 145 mm
- Hammer Blades : 20 pieces
- Dimensions of packaging: 2450x850x900 mm (LxWxH)
- Rpm: 1.000 (front & rear)
- Mounting: Three point hitch of Cat. 2
- Tractor: min. 60 HP
- Deck thickness : 5mm Doubled Skinned
- Side Wall thickness : 8mm
- Skid thickness : 8mm
Please Note:
The mower unit is delivered in a steel crate. The gearbox and drive shaft is dry and must be filled with oil (80W90 GEARBOX OIL ) PTO shaft and other grease nipples requires greasing prior to use.
Cloveragri only supply's Quality Implements with the best Welding, Hydraulics, Paint and Design giving 100% product satisfaction. Please don't get caught out with inferior quality that may cost you double in the long run.
