NEW 2026 RHINOCEROS XN18L - 1.8T 3CY D902 KUBOTA DIESEL ENGINE.

THIS MODEL COMES WITH ADJUSTABLE TRACKS - 990MM to 1240MM

NEW LONGER BOOM - 2 SPEED TRACKING


PACKAGE 1

***** $21,990.00 INCLUDES

400MM BUCKET

TOOL BOX & MANUALS

FILTER SERVICE KIT


PACKAGE 2

***** EXTRA $2000.00 - $23,990.00 FOR 3 PIECE PACKAGE INCLUDES :

400MM BUCKET

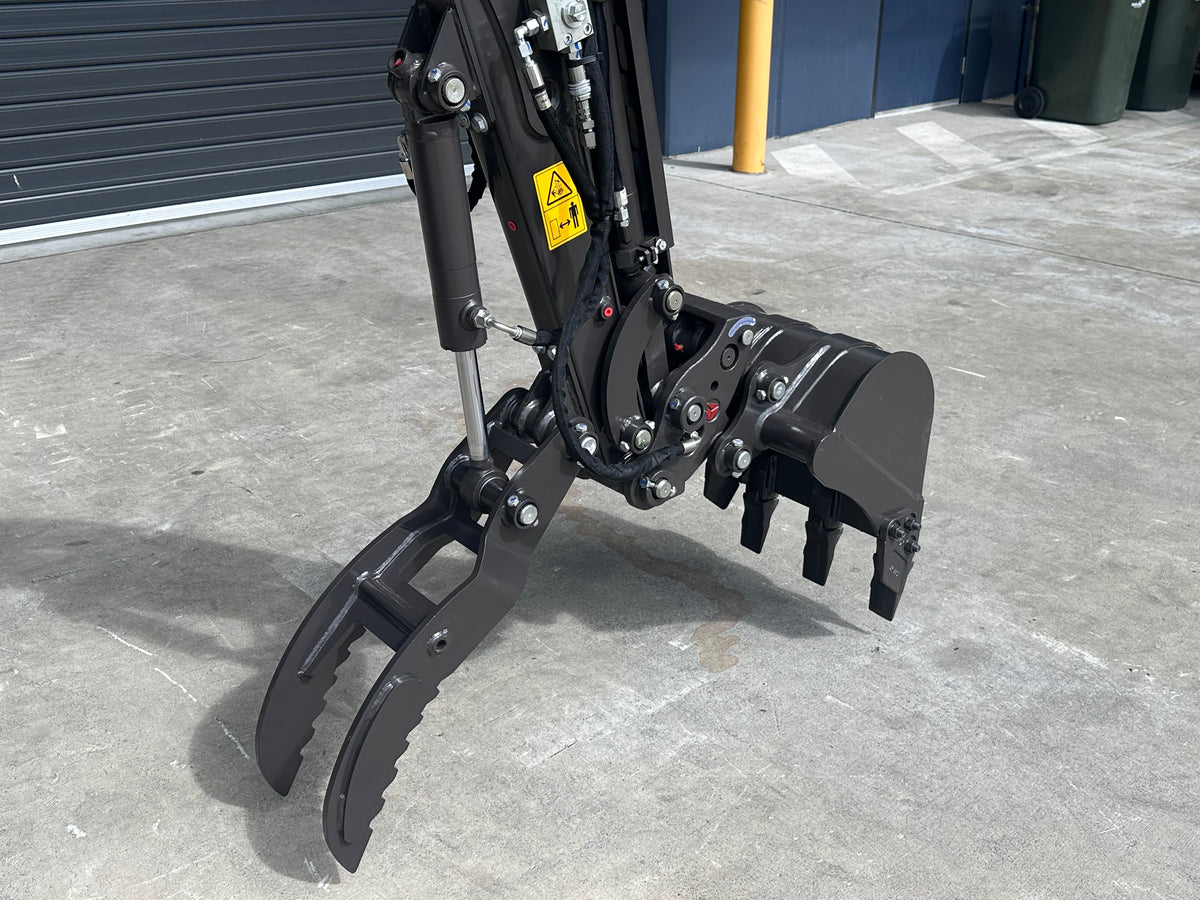

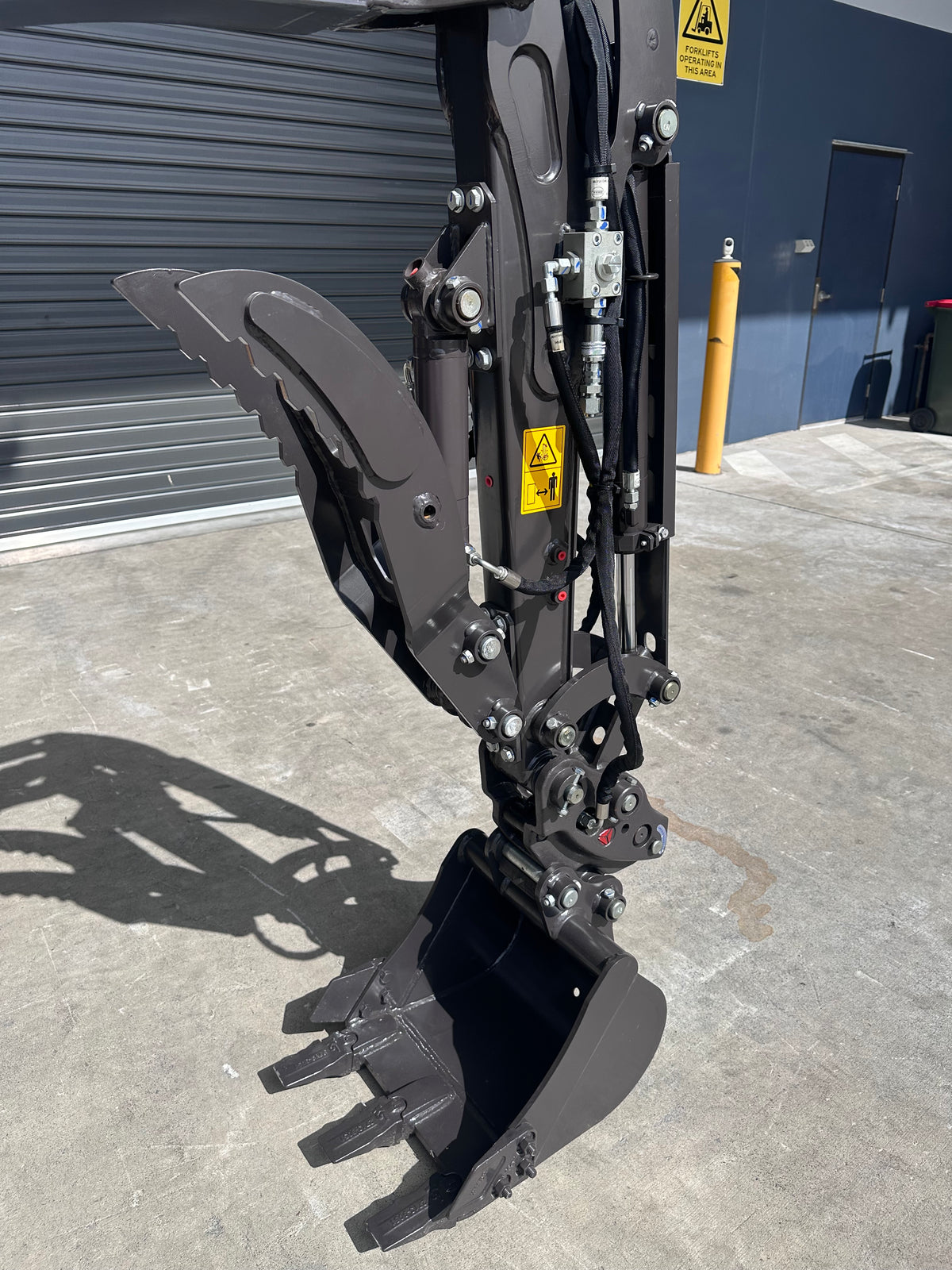

HYDRAULIC THUMB GRAB

HYDRAULIC QUICK HITCH

TOOL BOX & MANUALS

FILTER SERVICE KIT


PACKAGE 3

***** EXTRA $4000.00 - $25,990.00 FOR 8 PIECE PACKAGE INCLUDES :

200MM / 400MM / 600MM / 1000MM BUCKETS

RIPPER

STICK RAKE

HYDRAULIC THUMB GRAB

HYDRAULIC QUICK HITCH

TOOL BOX & MANUALS

FILTER SERVICE KIT


OPTIONAL EXTRA ATTACHMENTS

1000MM SIEVE BUCKET $

1000MM TILTING MUD BUCKET $1550.00

AUGER DRIVE INCLUDING 300MM AUGER $2500.00

ROCK BREAKER $2950.00

10X5 3.5T PREMIUM HYDRAULIC TIPPING TRAILER $9,990.00 ( purchased with machine )


NEW MODEL - NEW BOOM WITH MAIN HYDRAULIC CYLINDER LOCATED ON TOP - 2 SPEED TRACKING -

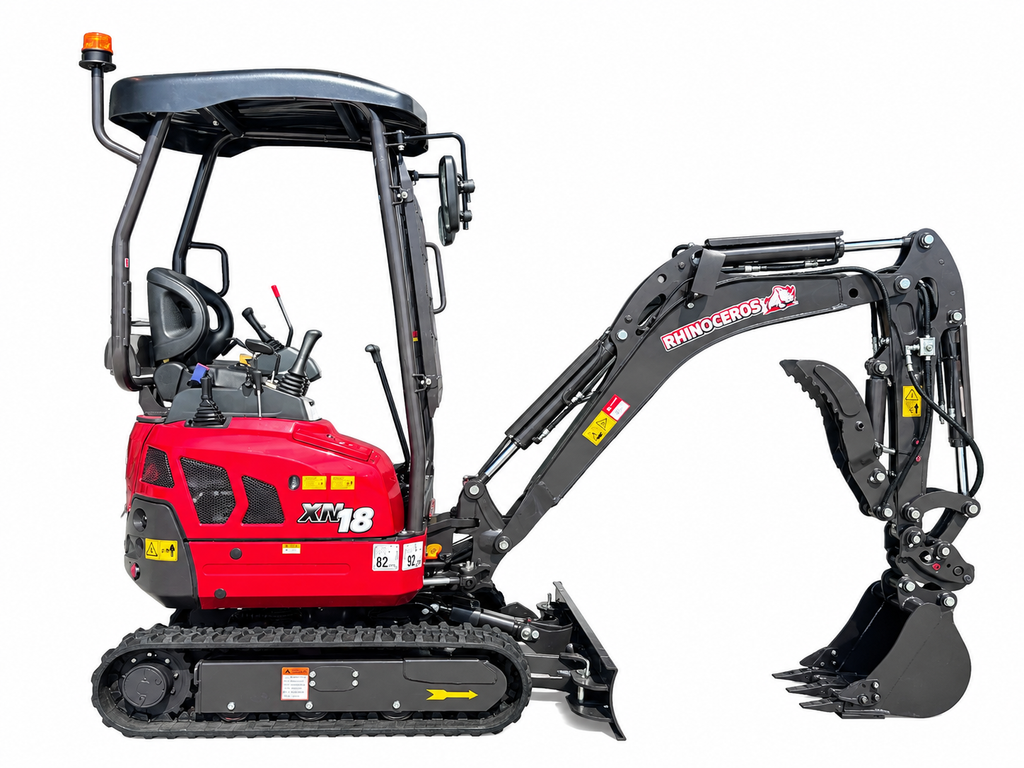

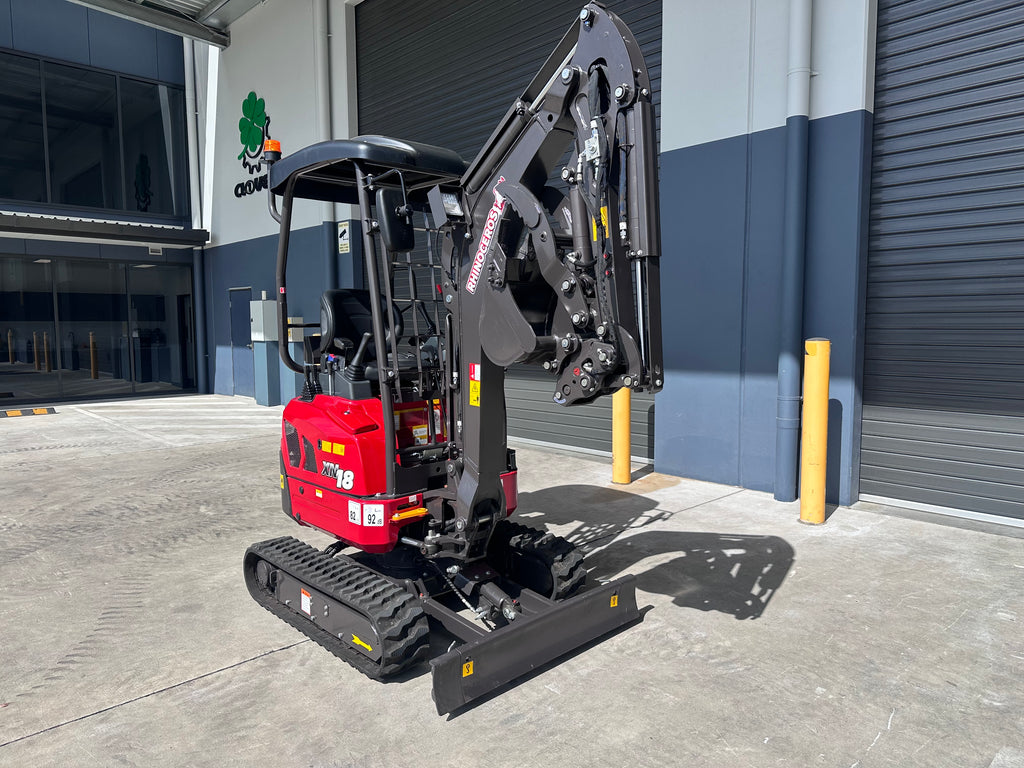

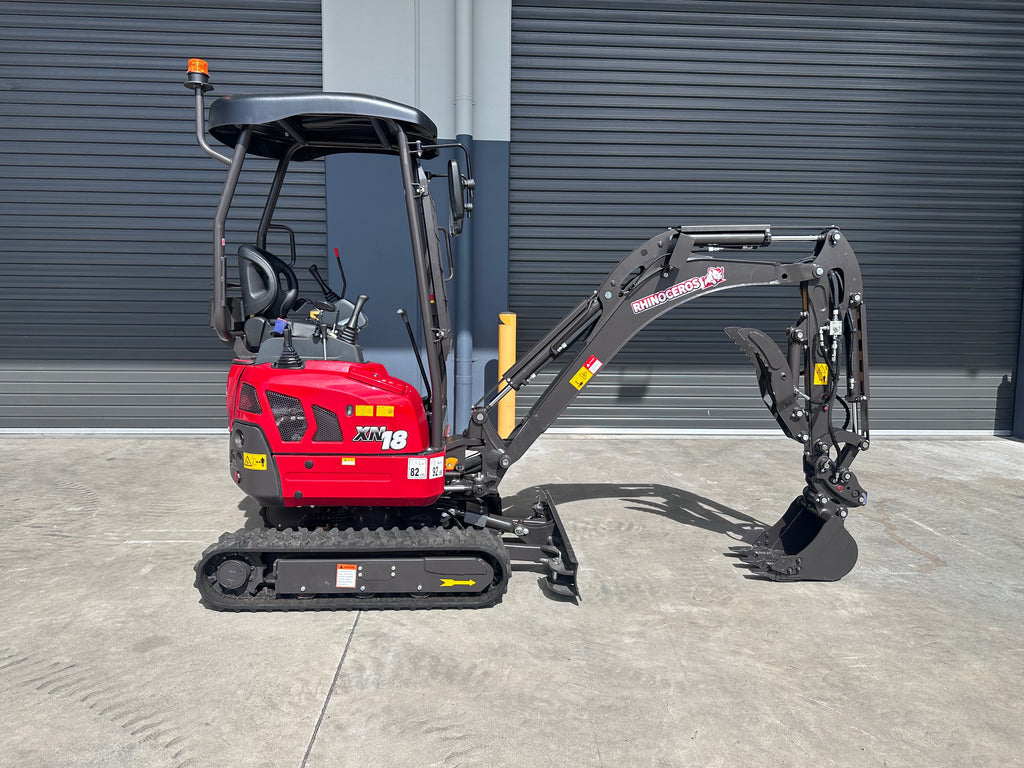

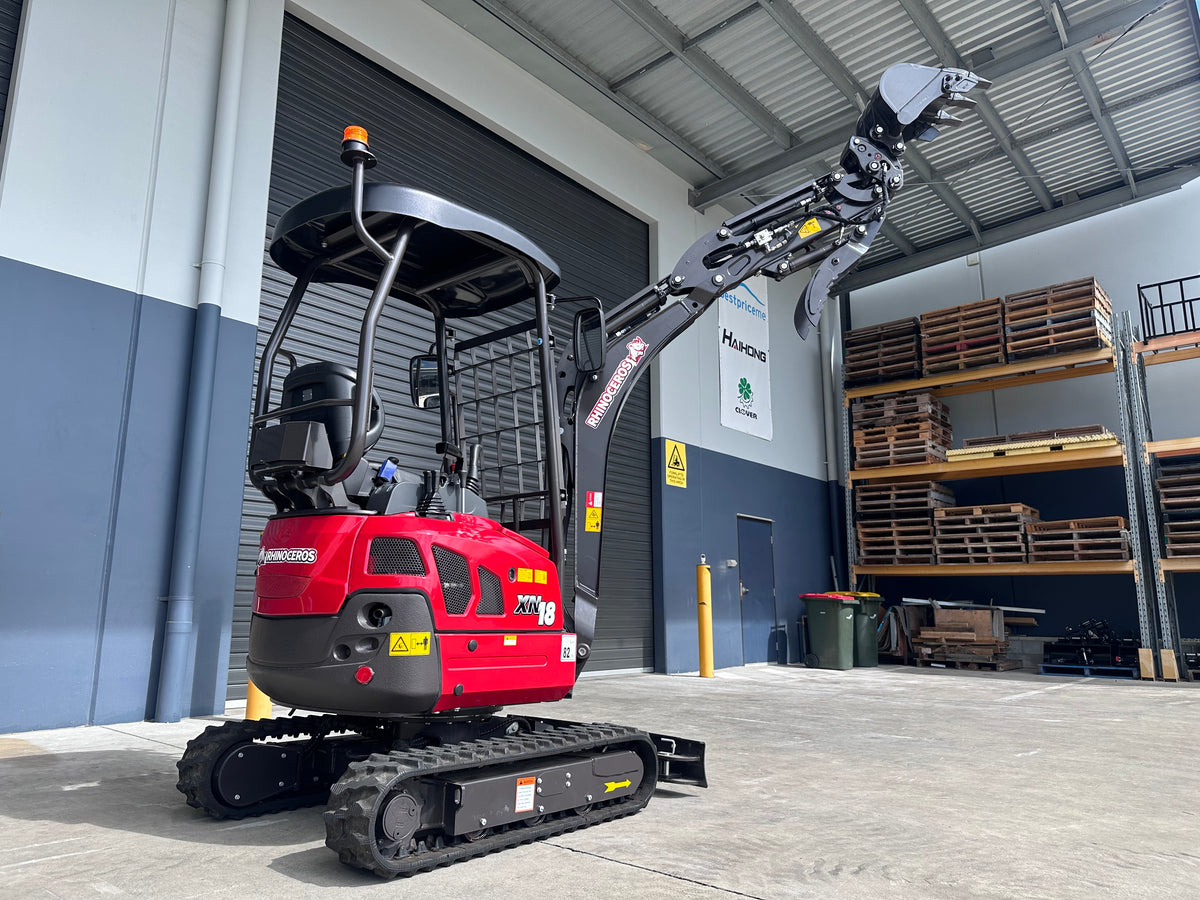

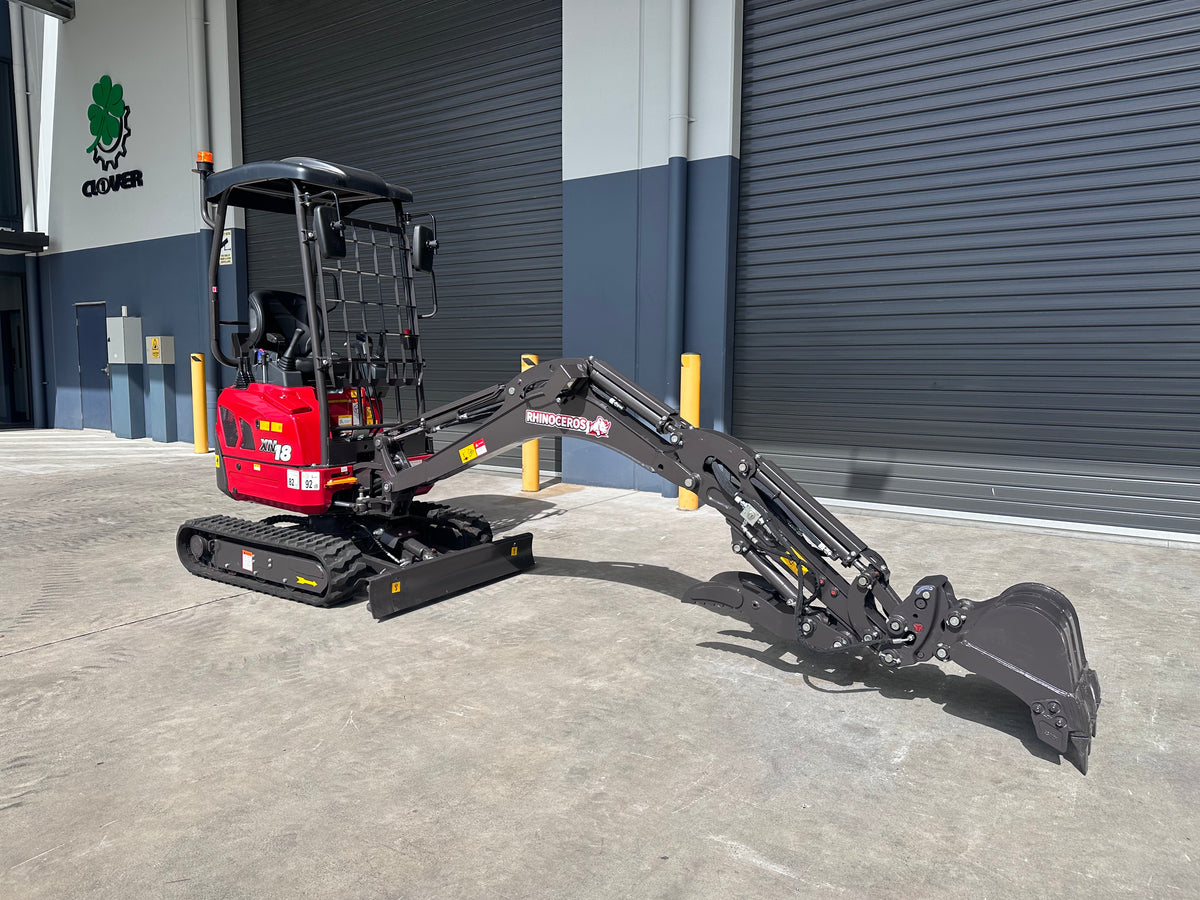

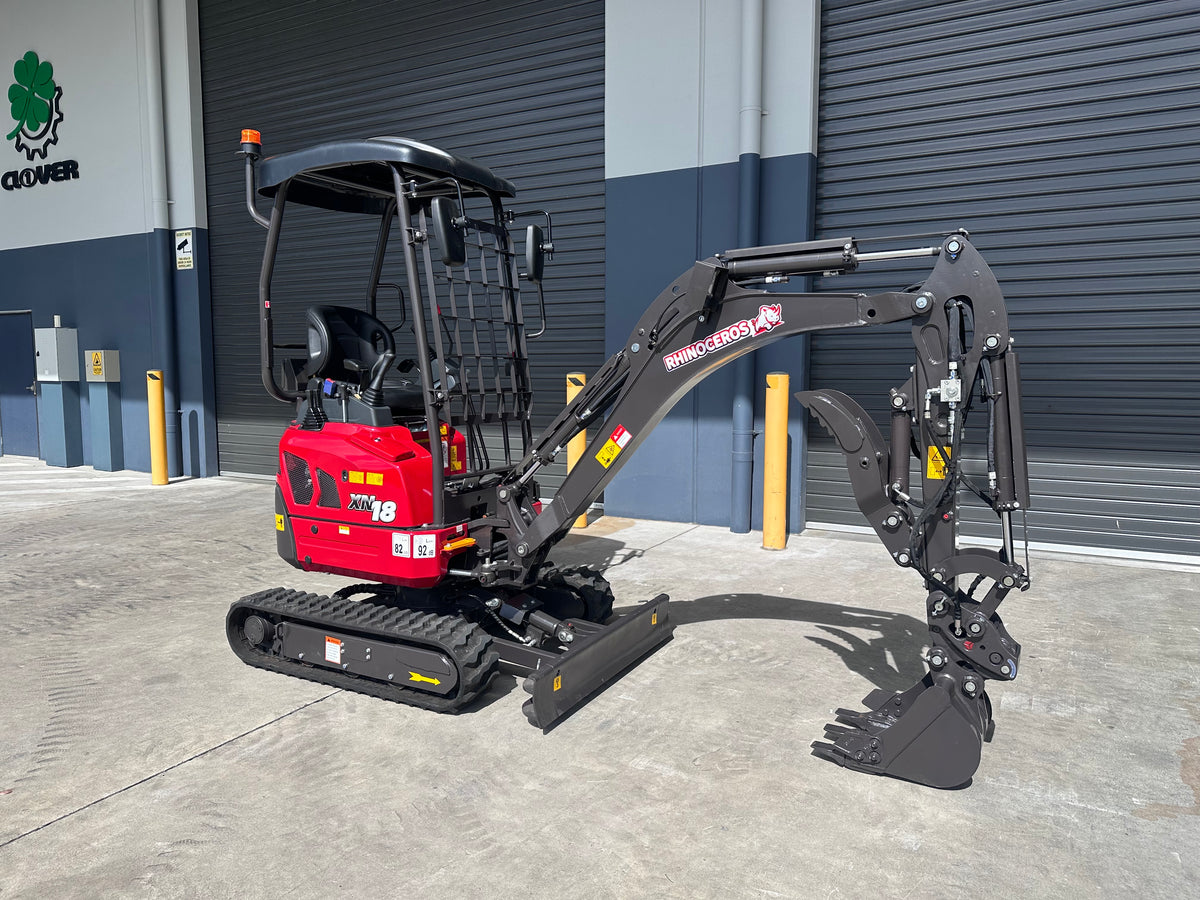

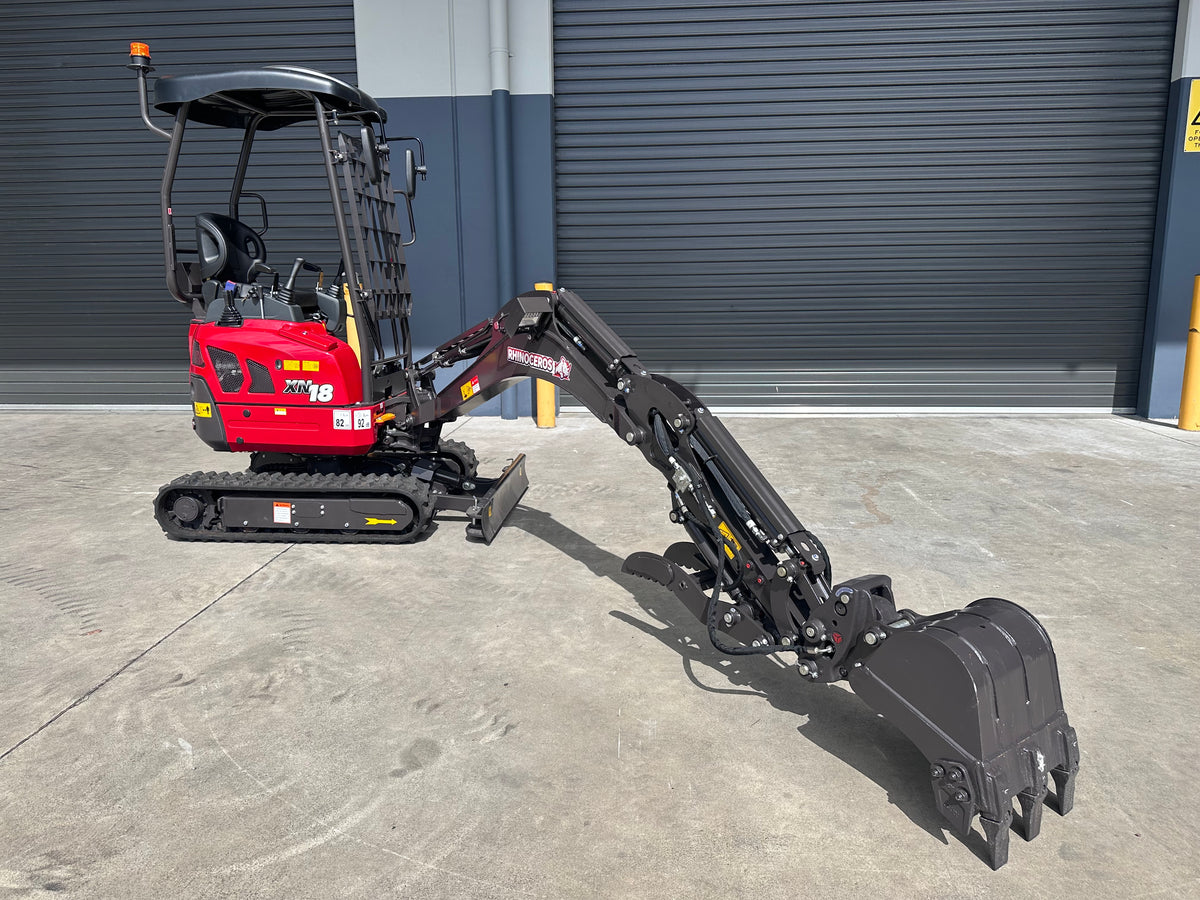

The Rhinoceros XN18L Mini Excavator is a versatile and compact machine weighing 1.8 tons, equipped with a Japanese Kubota D902 3cyl diesel engine, and features 2-speed tracking, hydraulic quick hitch as well as a new swing boom with main lifting hydraulic cylinder located on top . All hydraulic hoses are mounted inside the boom.

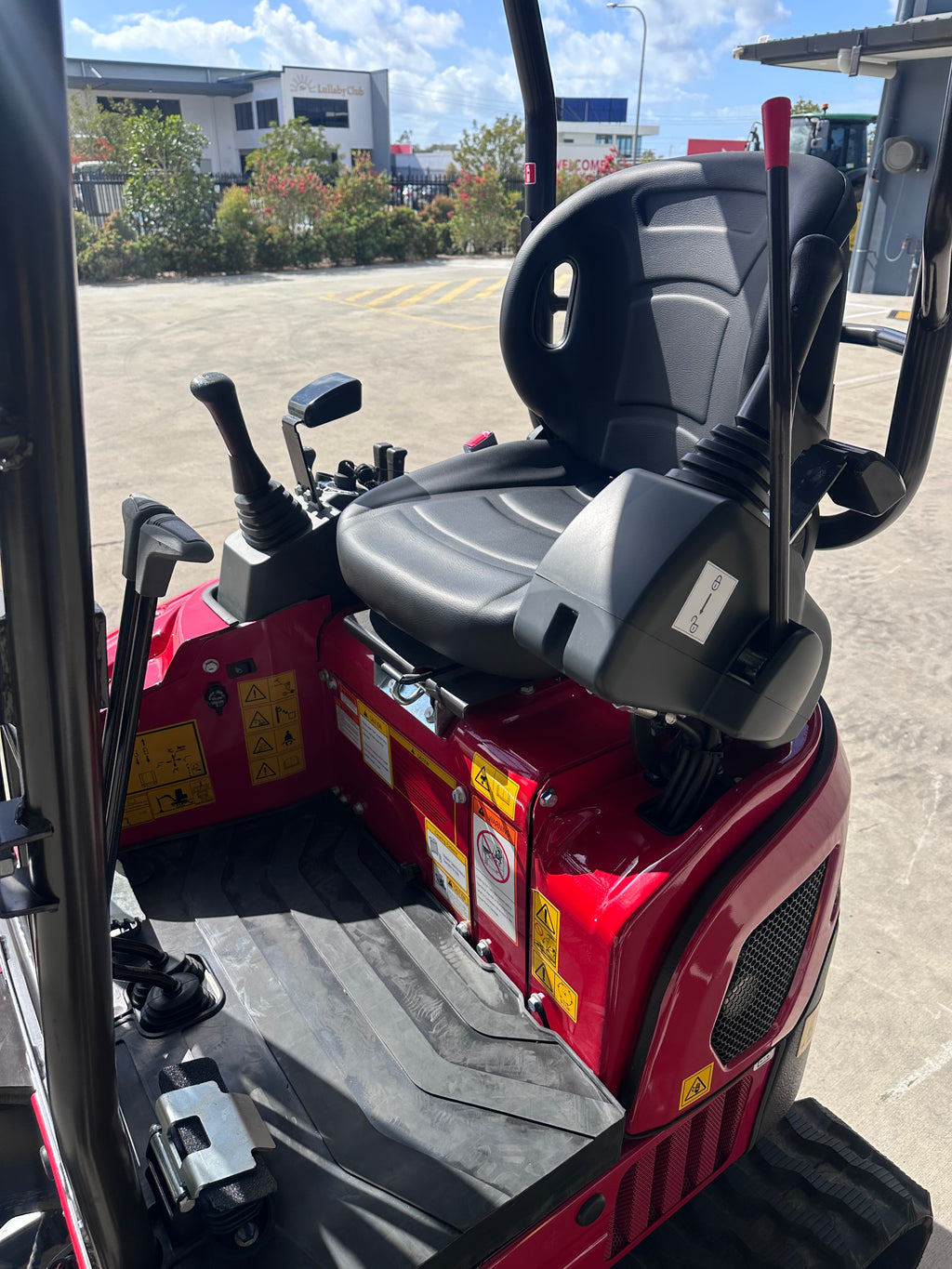

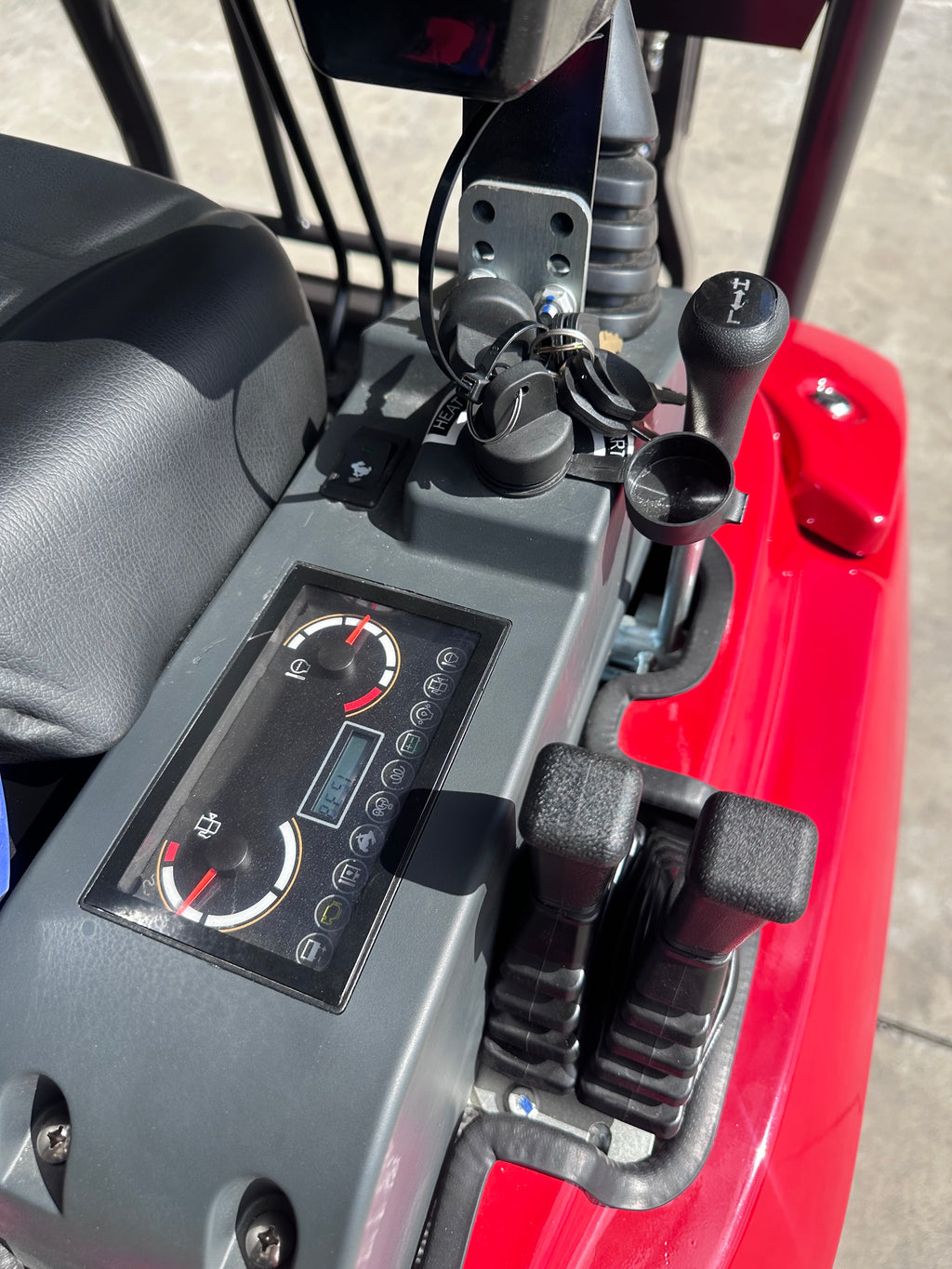

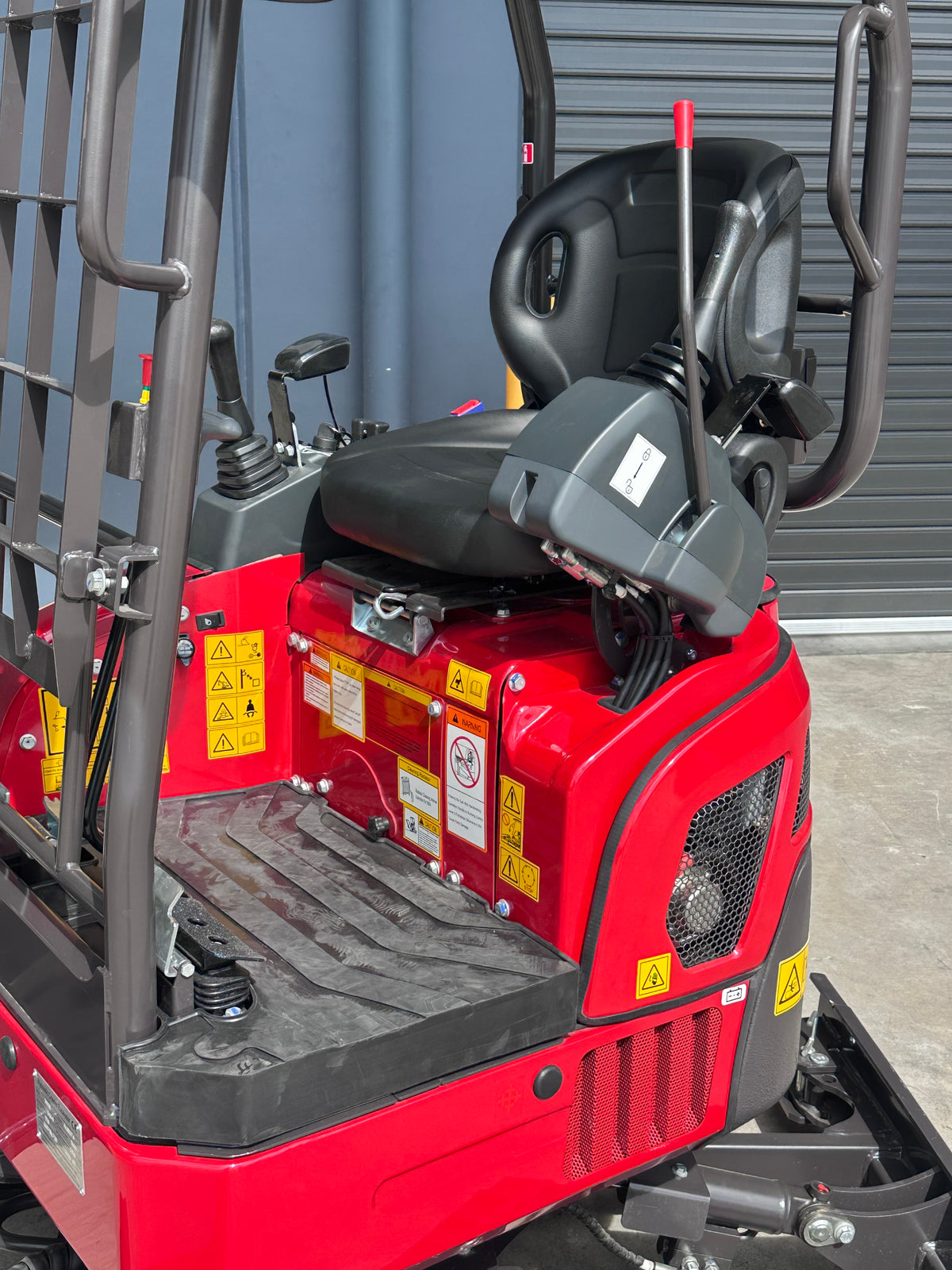

Its ergonomically designed seat mounted pilot control joysticks enhance comfort and precision, while the high-quality hydraulic system, including a constant variable piston pump and auxiliary output, allows for smooth operation and compatibility with various attachments such as post hole diggers, rock breakers and tilting mud buckets .

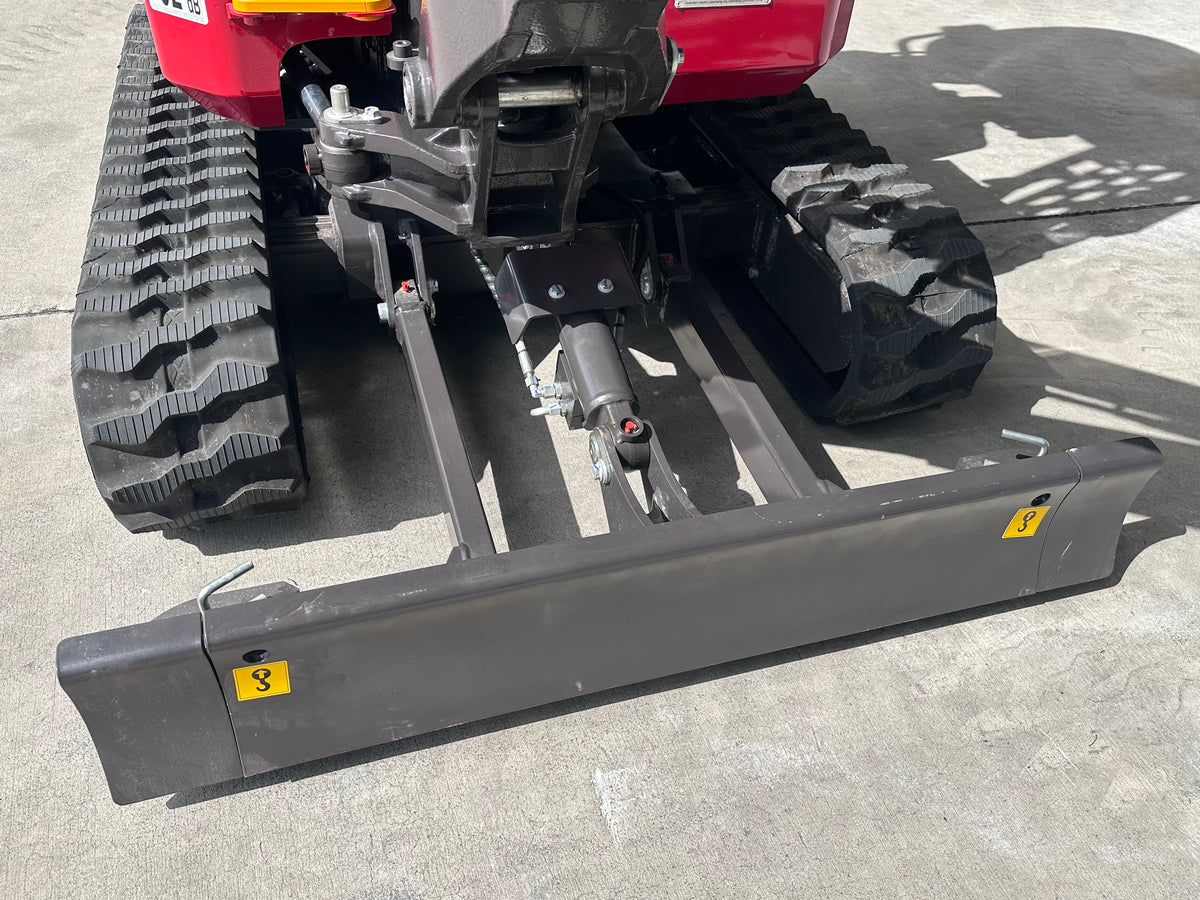

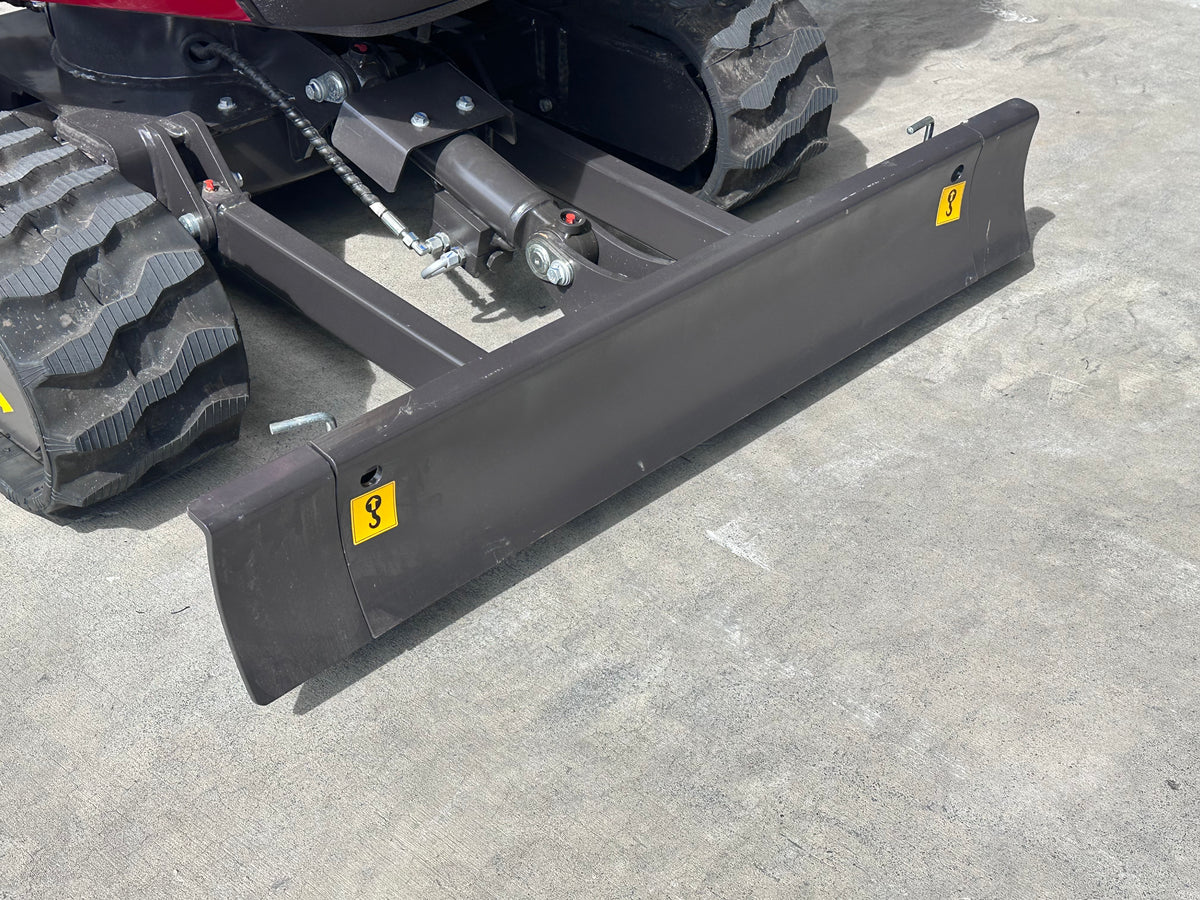

The swing boom and solid dozer blade further improve its capability to work in confined areas, making it an ideal choice for landscaping, excavation, and construction tasks.

Available Attachments :
- 200mm Trench Bucket
- 400mm GP Bucket
- 600mm GP Bucket
- 1000mm Mud Bucket
- Hydraulic Quick Hitch
- Ripper
- Rake
- Hydraulic Thumb Grab

Optional Attachments and Trailers:
Plant Trailer 10x5 3.5T
Hydraulic Tipper 10x5 3.5T
Rock Breaker
1000mm Tilting Mud Bucket

SPECIFICATION:
Model : XN18L
Manufacturer : SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
Brand: RHINOCEROS
Operating Weight: 1800kg
Digging bucket capacity: 0.045cbm
Digging bucket width: 400mm

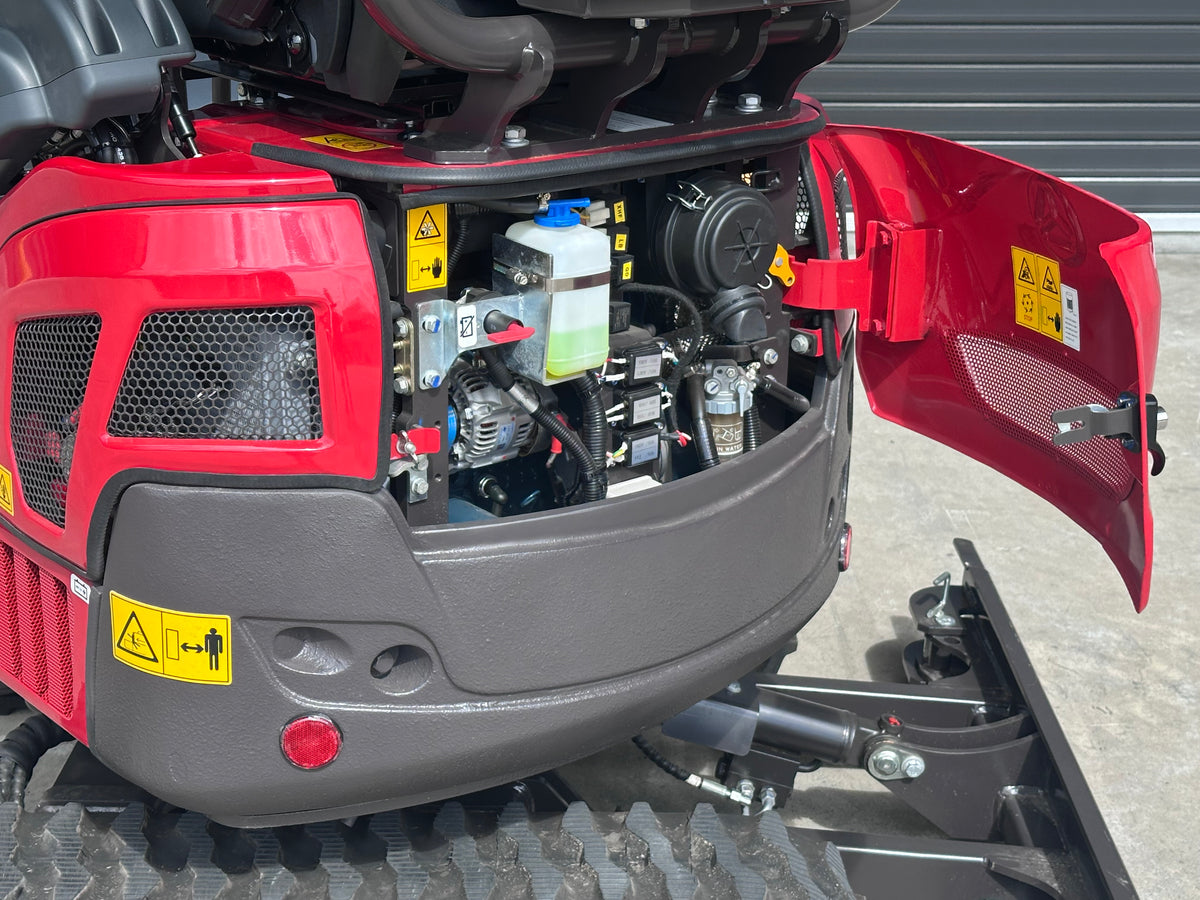

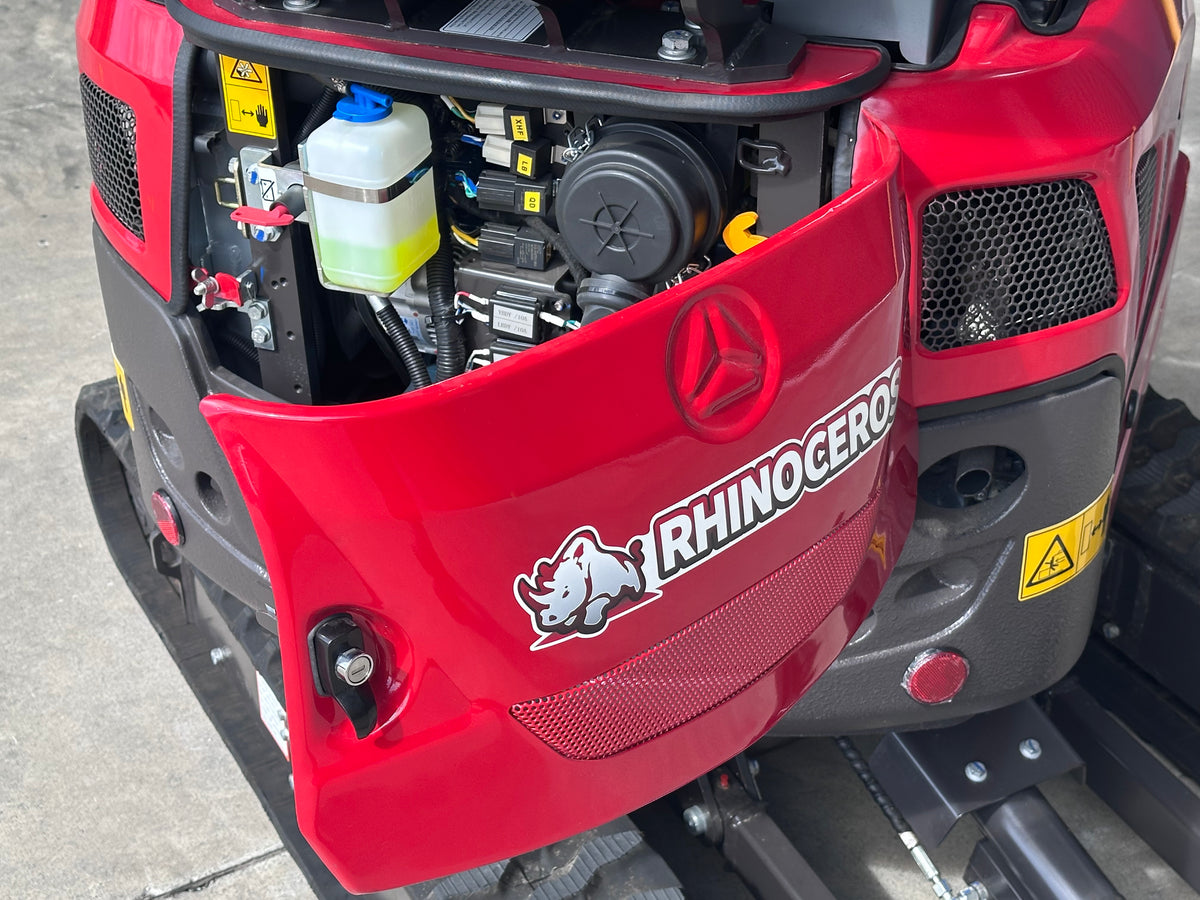

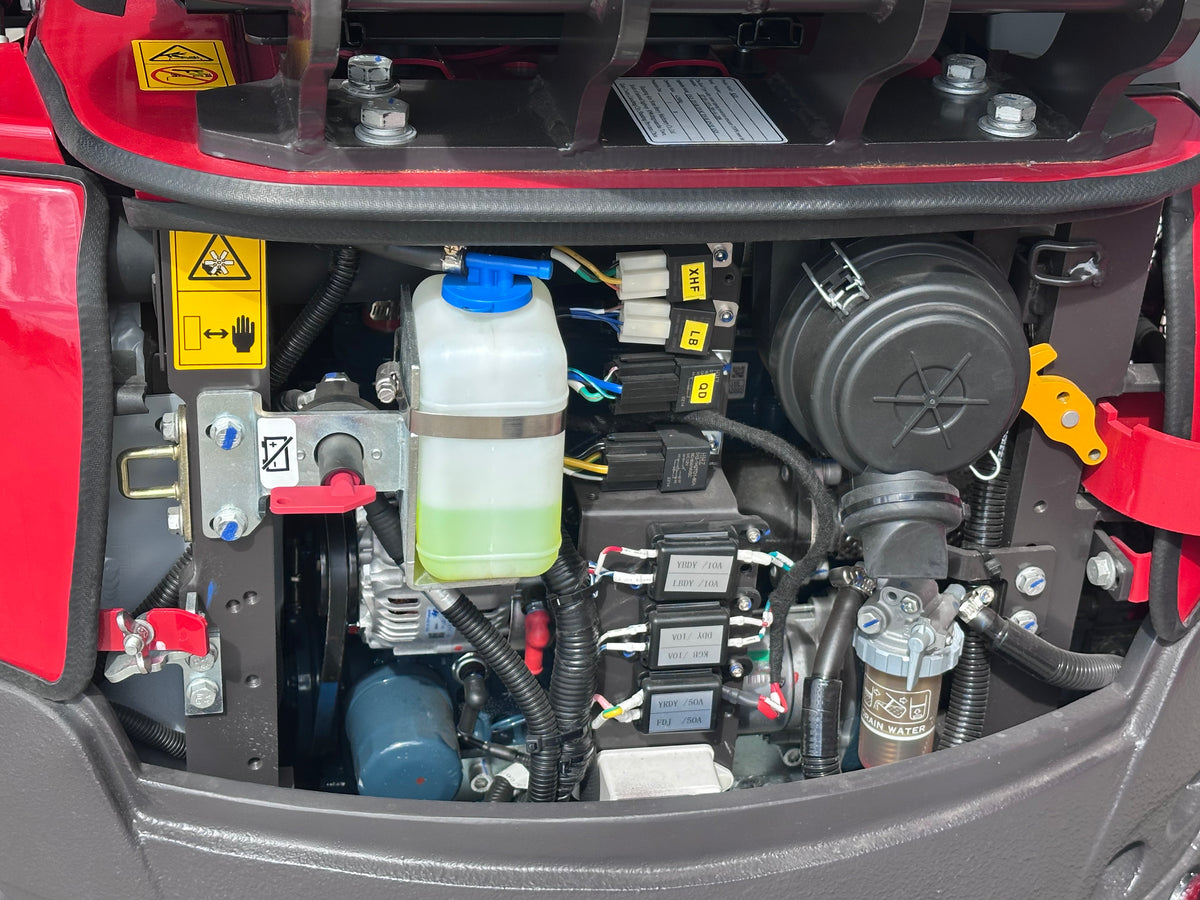

Engine: Kubota D902 3cyl diesel engine
Emissions Regulation: EPA Final Tier 4
Max Rated power: 23hp/3600rpm
Displacement: 0.898L
Bore stroke : 72mm x 73.6mm
Main pump : KDK Variable displacement piston pump
Working Pump flow : 39.6L/Min
Valve : BEIFANG
Displacement : 6.8ml/r
Swing motor : EATON USA
Traveling motor : EATON USA
Fuel tank capacity : 19L


MAIN DIMENSIONS
Overall dimension( LxWxH) : 2360x1150x2320m
Overall width : 990mm to 1240mm ( Adjustable Tracks )
Total length of track : 1450mm
Platform ground clearance : 440mm
Platform back turning radius : 790mm
Rubber Track only width : 230mm
Track height : 320mm

OPERATING RANGE
Max. Digging depth : 2188mm
Max. Vertical digging depth : 1775mm
Max. Digging height : 3240mm
Max. Dumping height : 2271mm
Max. Digging radius on ground : 3616 mm
Min. Rotation radius : 1440mm
Max. Upgrade height of bulldozer blade : 260mm
Max. Digging depth of bulldozer blade : 285mm
Bucket Digging Force : 13.5kN
