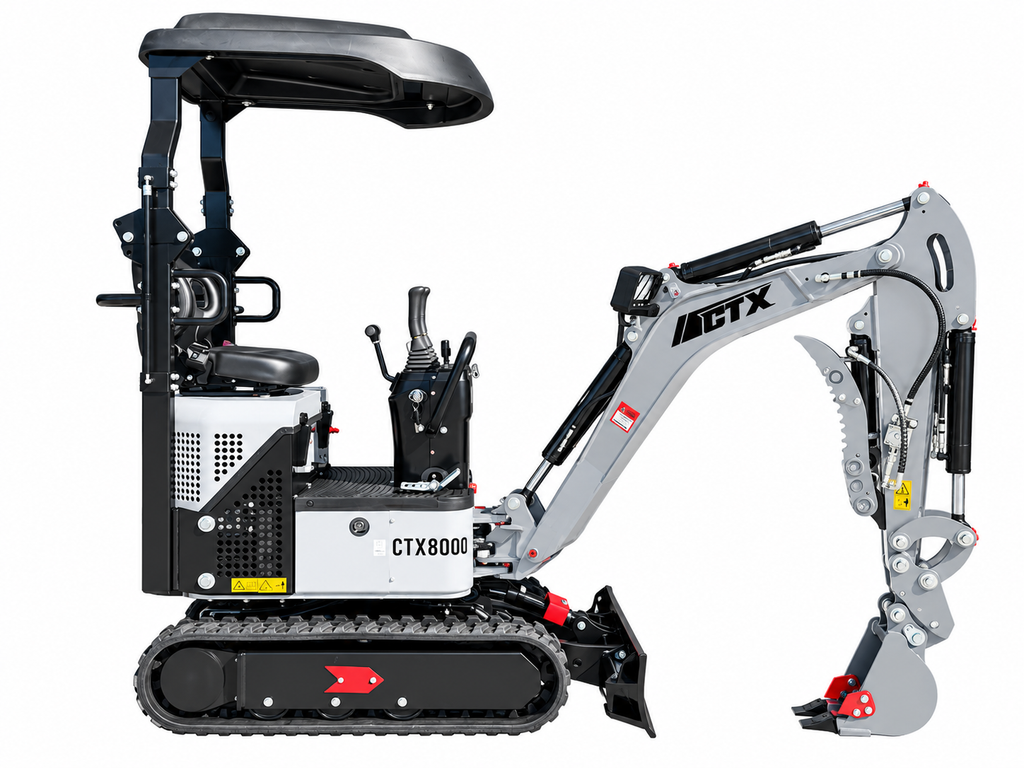

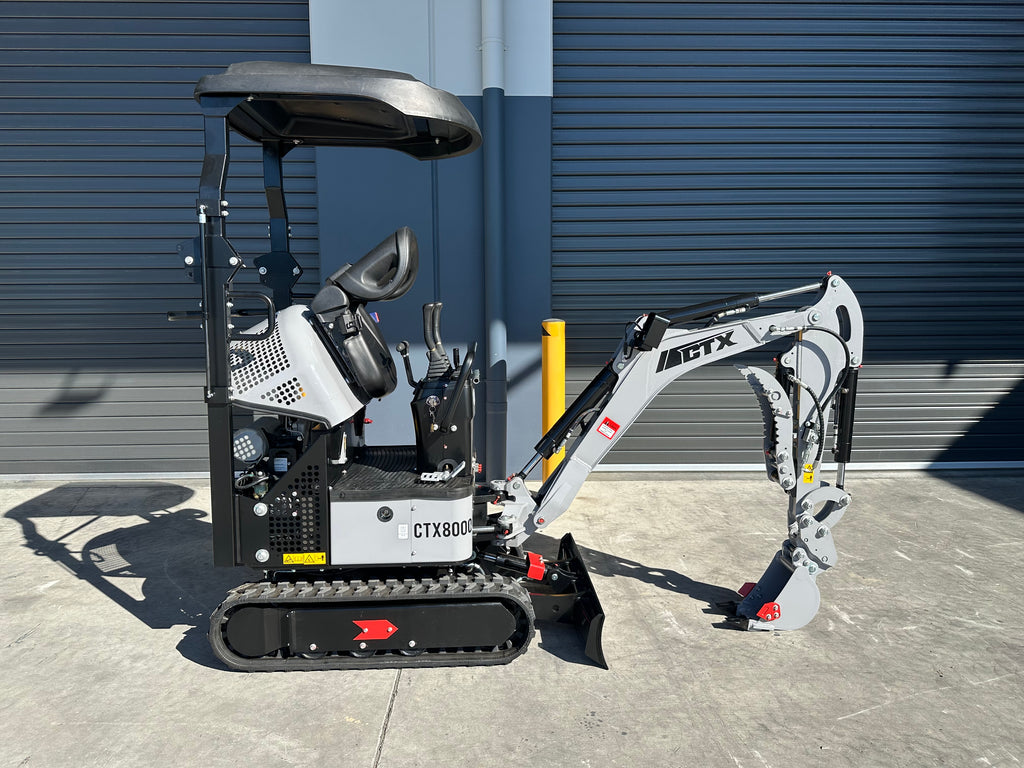

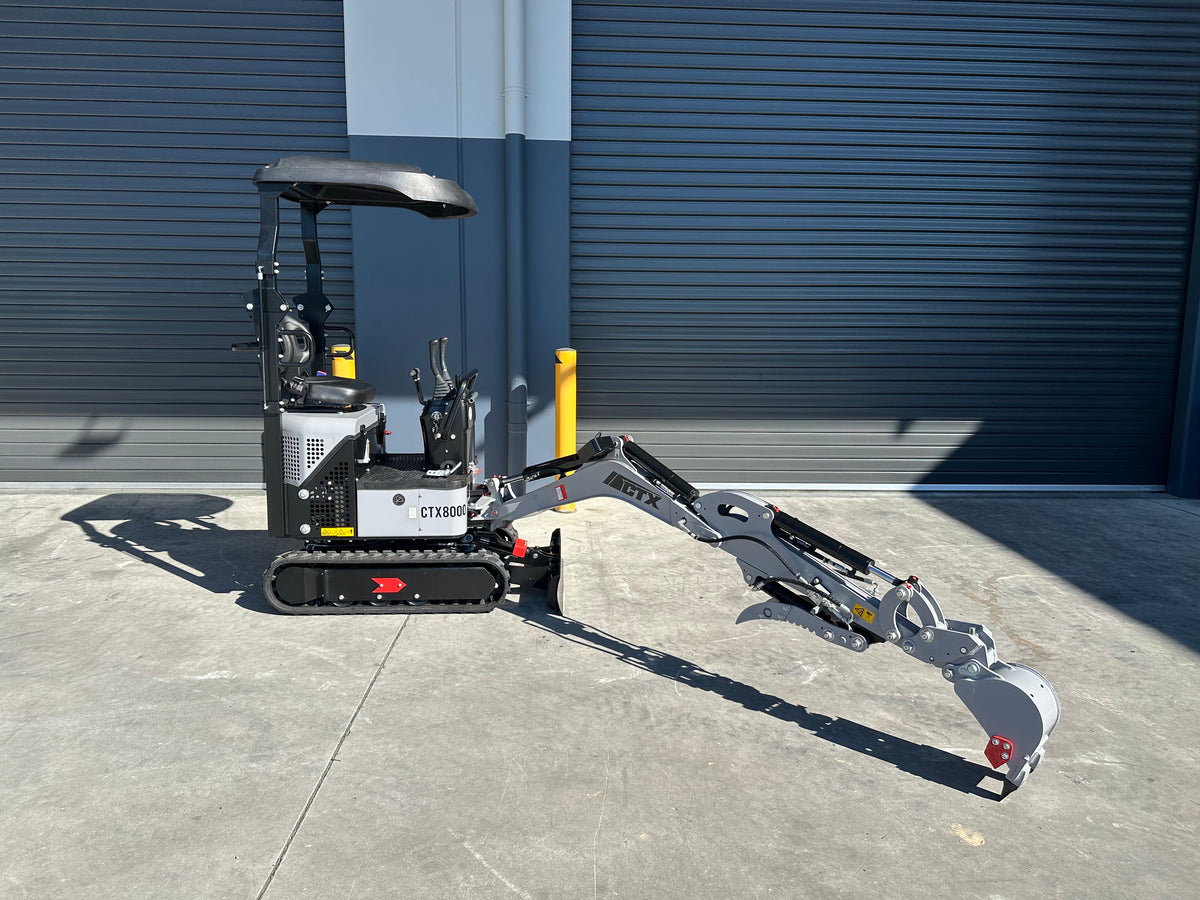

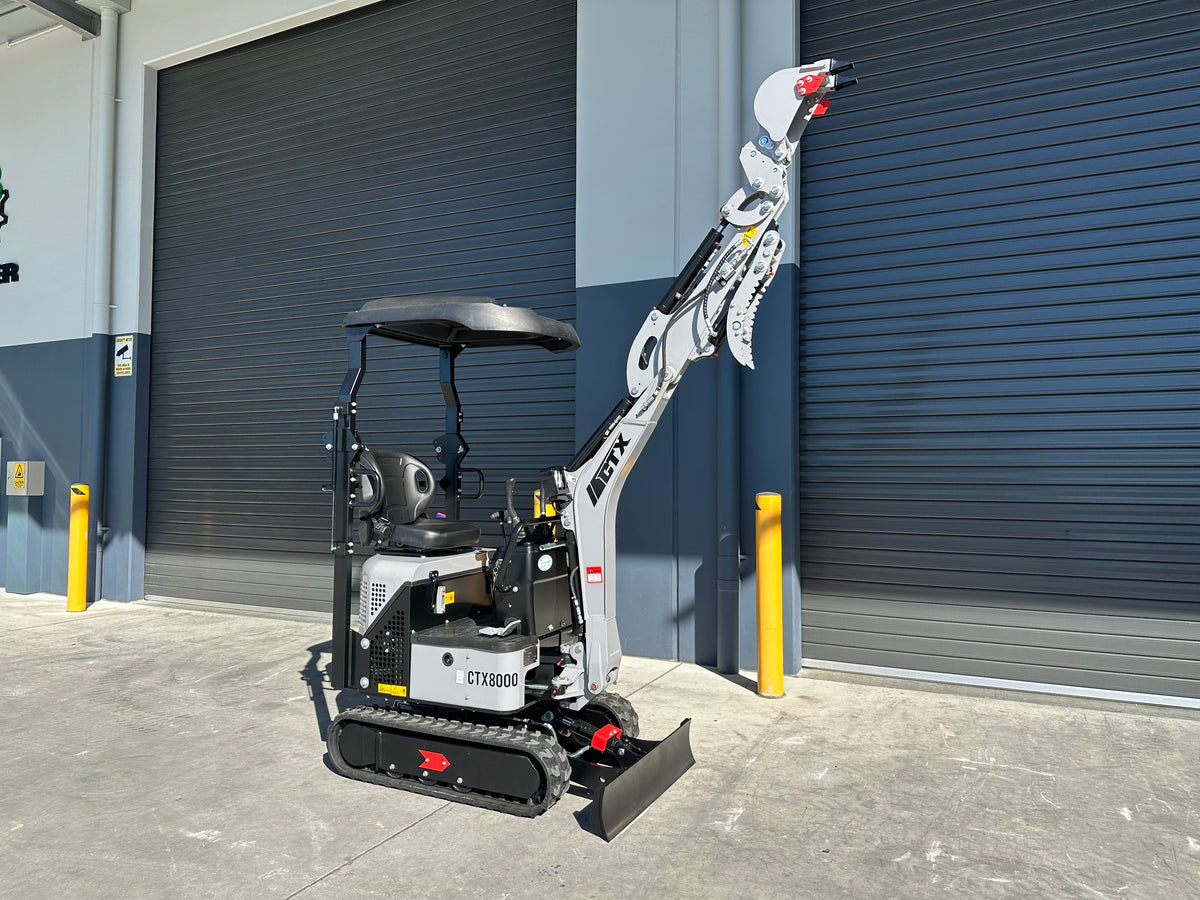

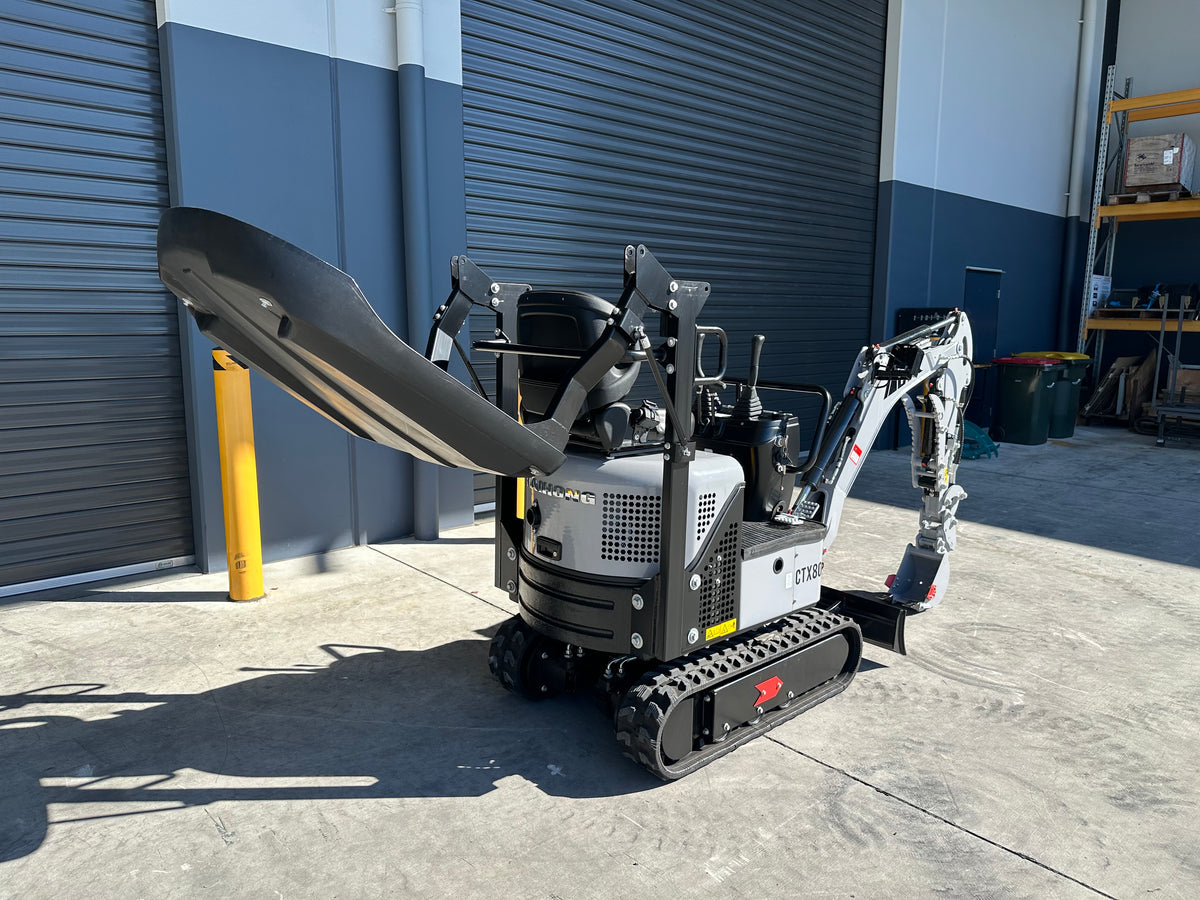

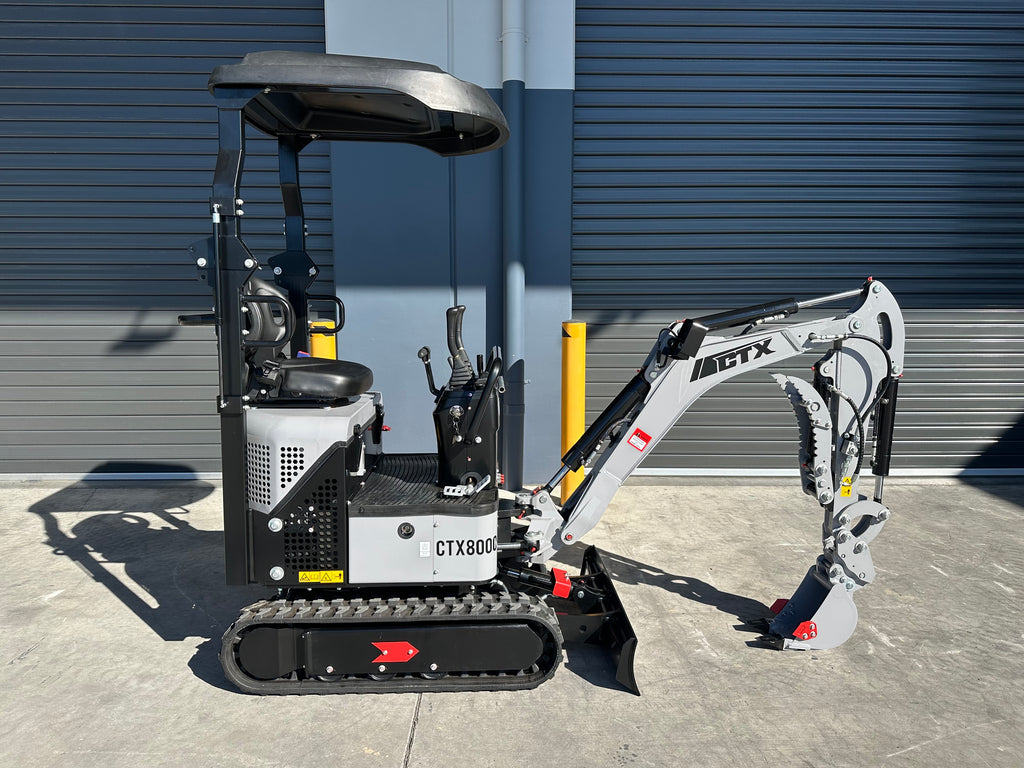

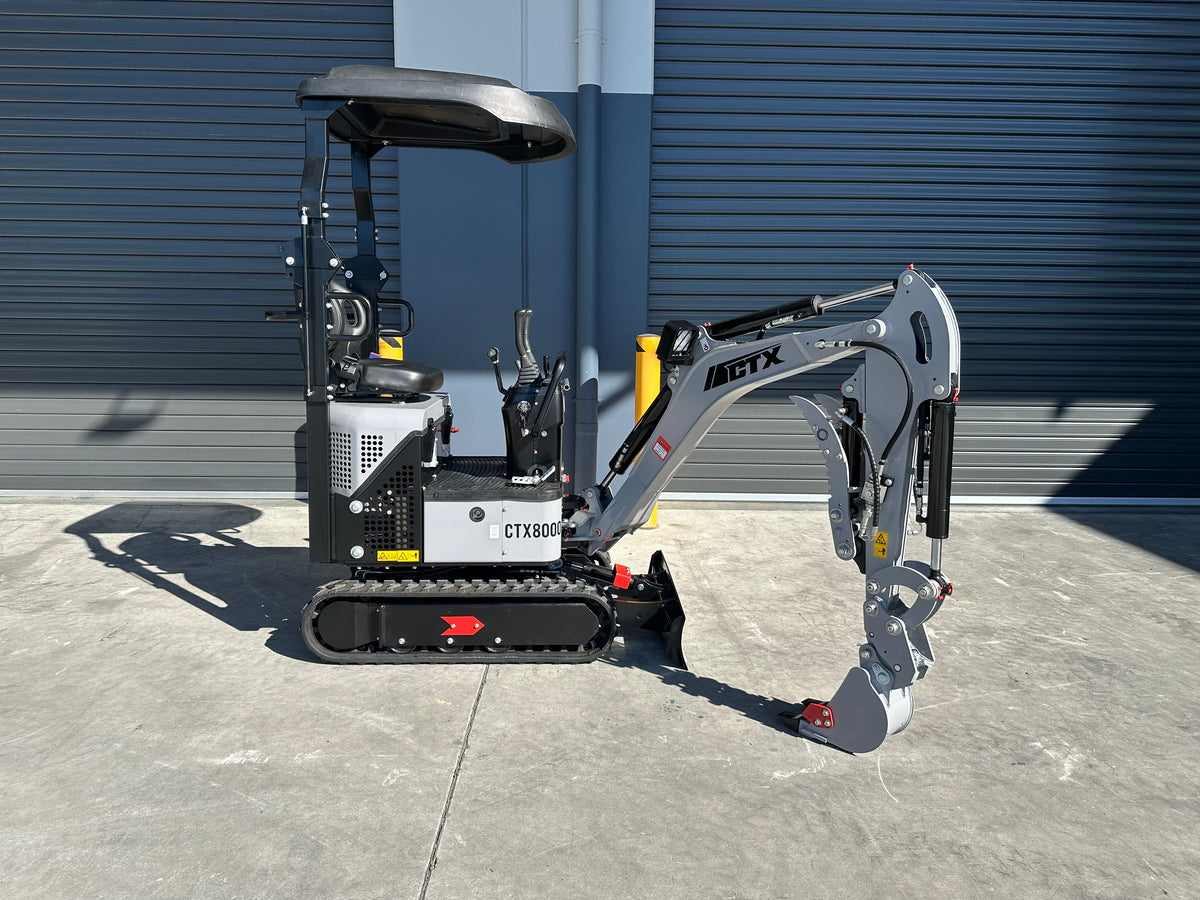

HAIHONG CTX8000 1.1T KOOP DIESEL ENGINE MINI EXCAVATOR

PACKAGE 1

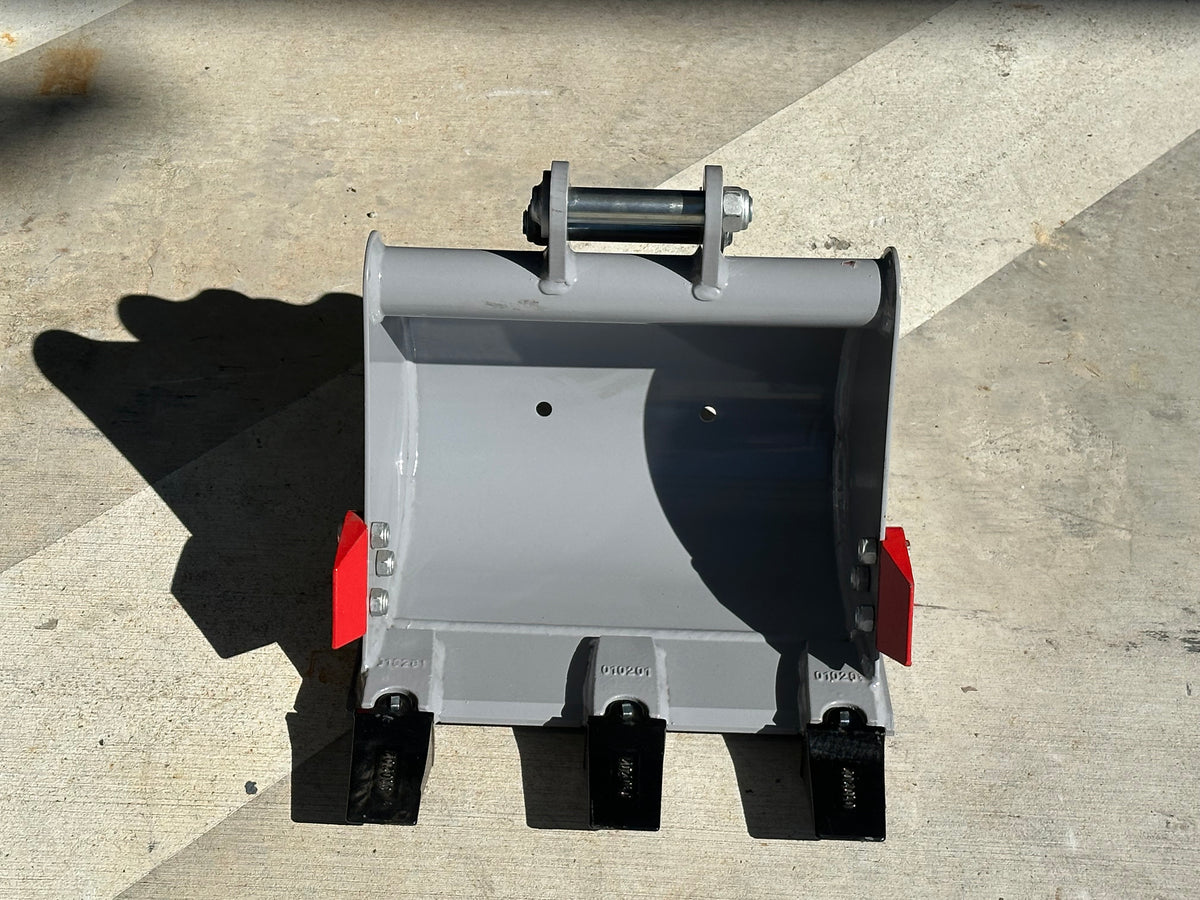

***** $9,990.00 INCLUDES 400MM BUCKET ********

TOOL BOX & MANUALS

FILTER SET


PACKAGE 2

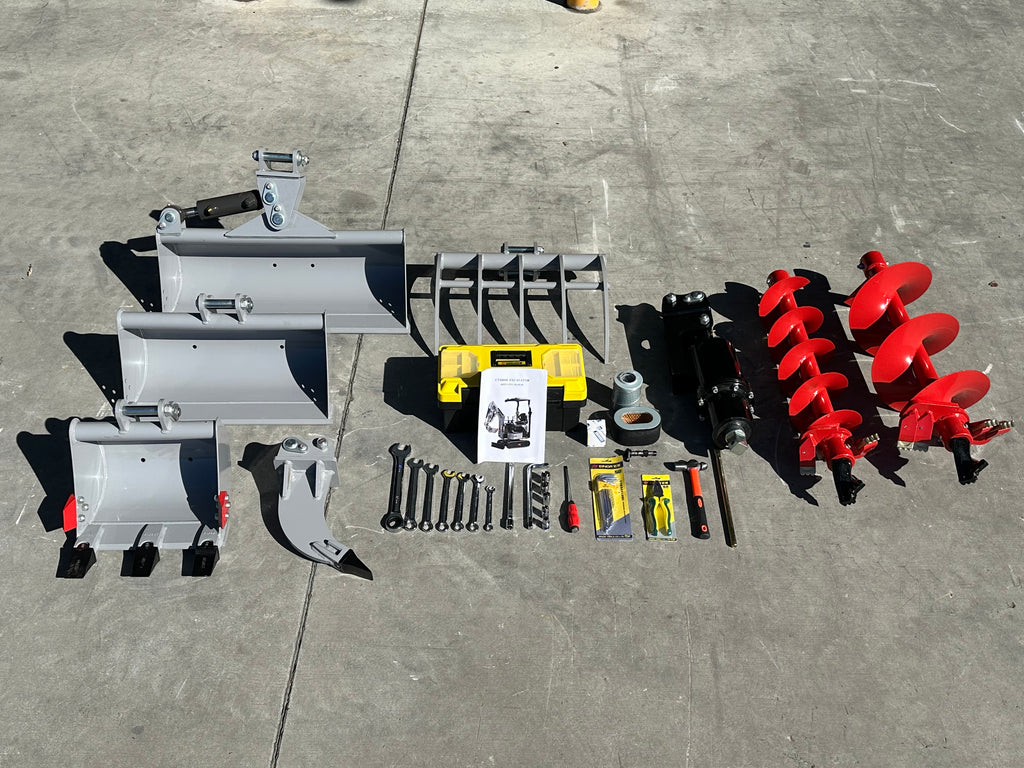

***** EXTRA $2000.00 ( $11,990.00 ) FOR 10 PIECE PACKAGE INCLUDES :

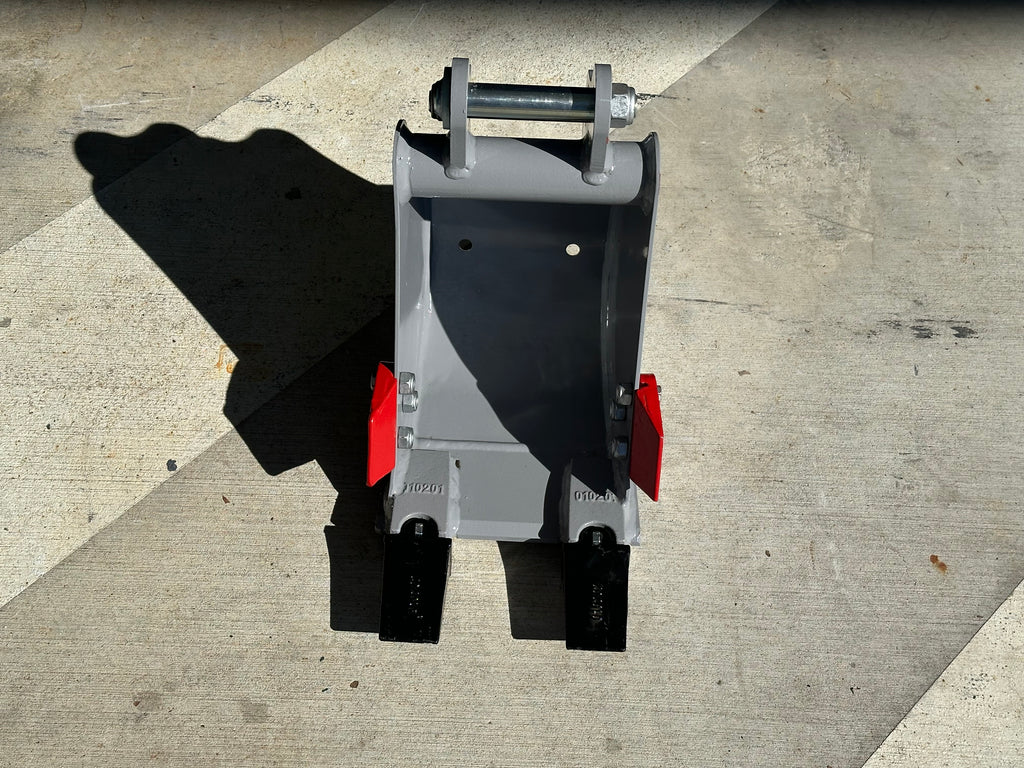

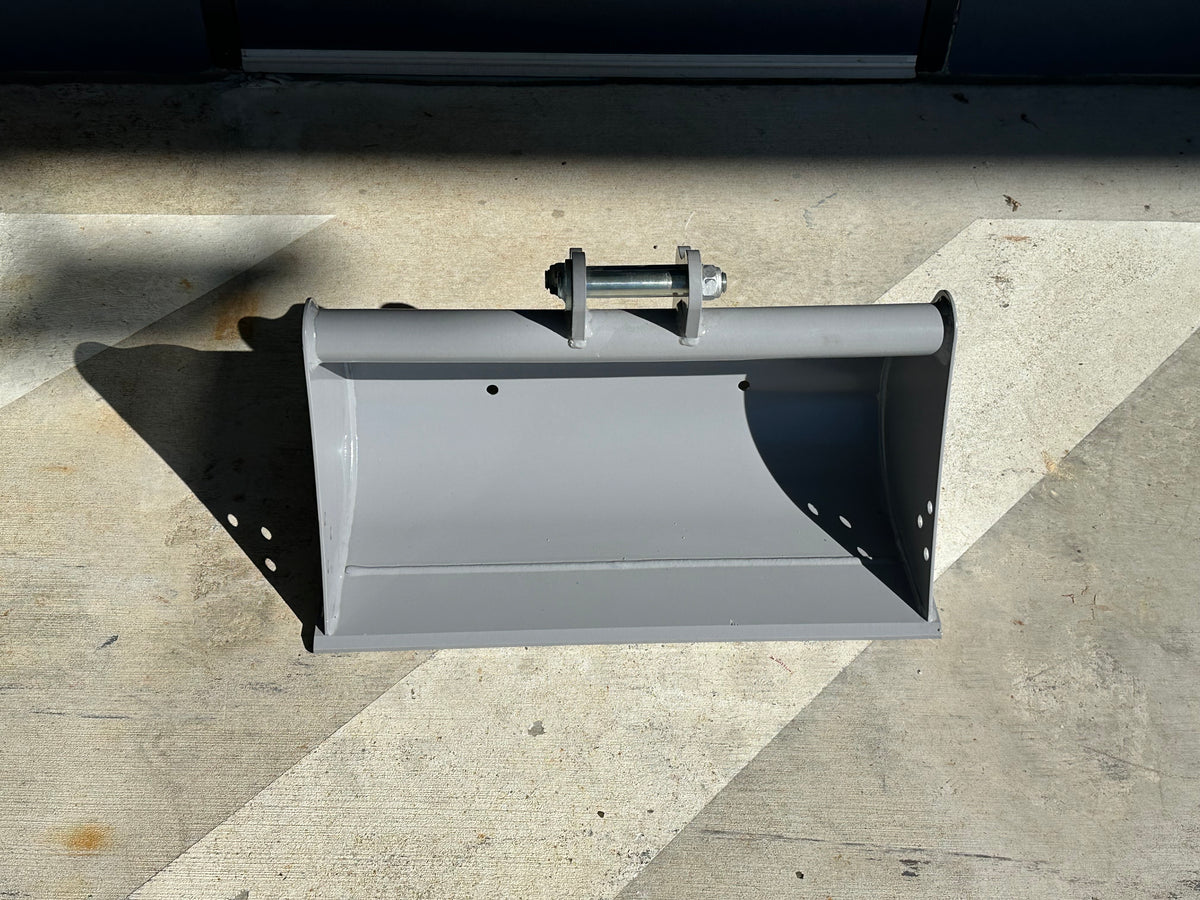

200MM / 400MM / 600MM / 800MM BUCKETS

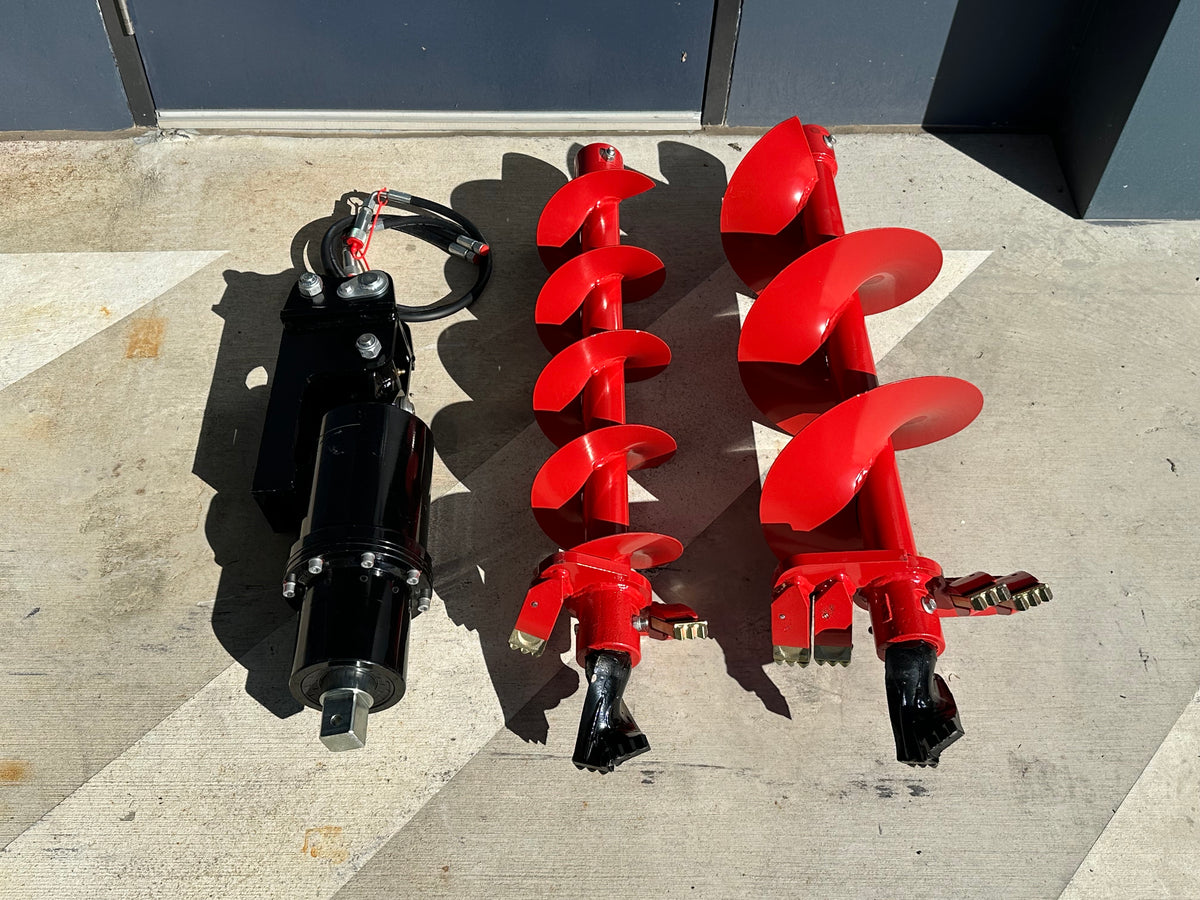

POST HOLE DIGGER HEAVY DUTY 200MM & 300MM AUGERS WITH REPLACEABLE TEETH

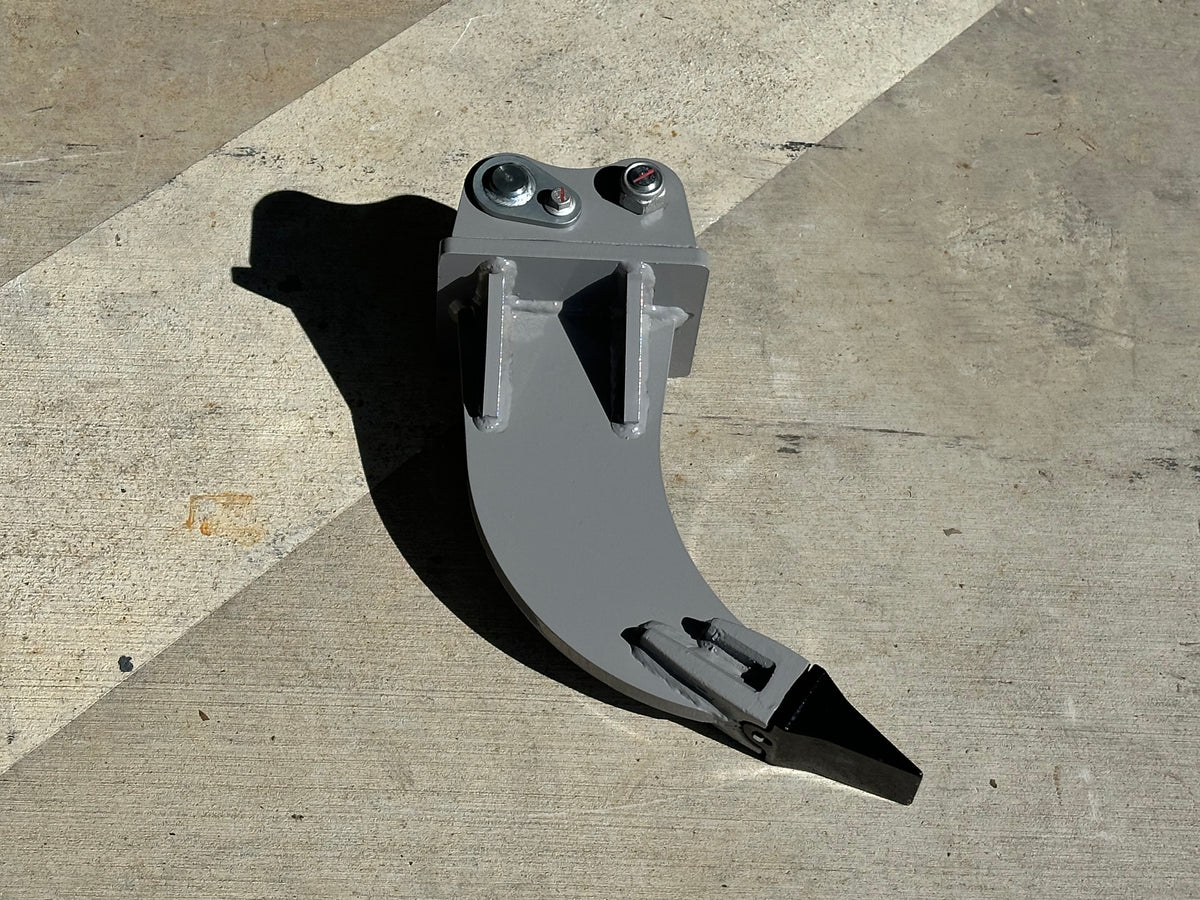

RIPPER

STICK RAKE

SPRING QUICK HITCH

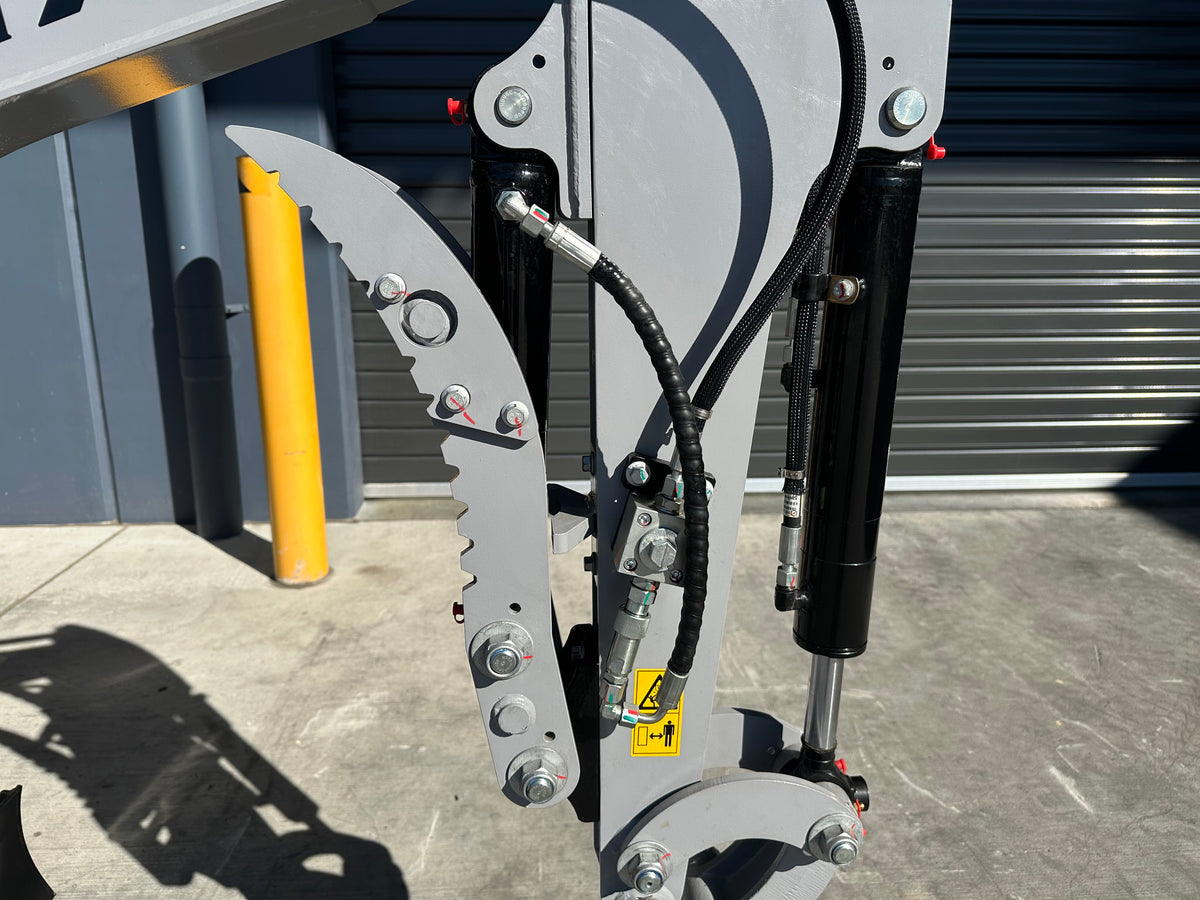

HYDRUALIC THUMB GRAB

TOOL BOX & MANUALS

FILTER SET


PACKAGE 3

***** EXTRA $3000.00 ( $12,990.00 ) FOR 10 PIECE PACKAGE INCLUDES :

200MM / 400MM / 600MM BUCKETS

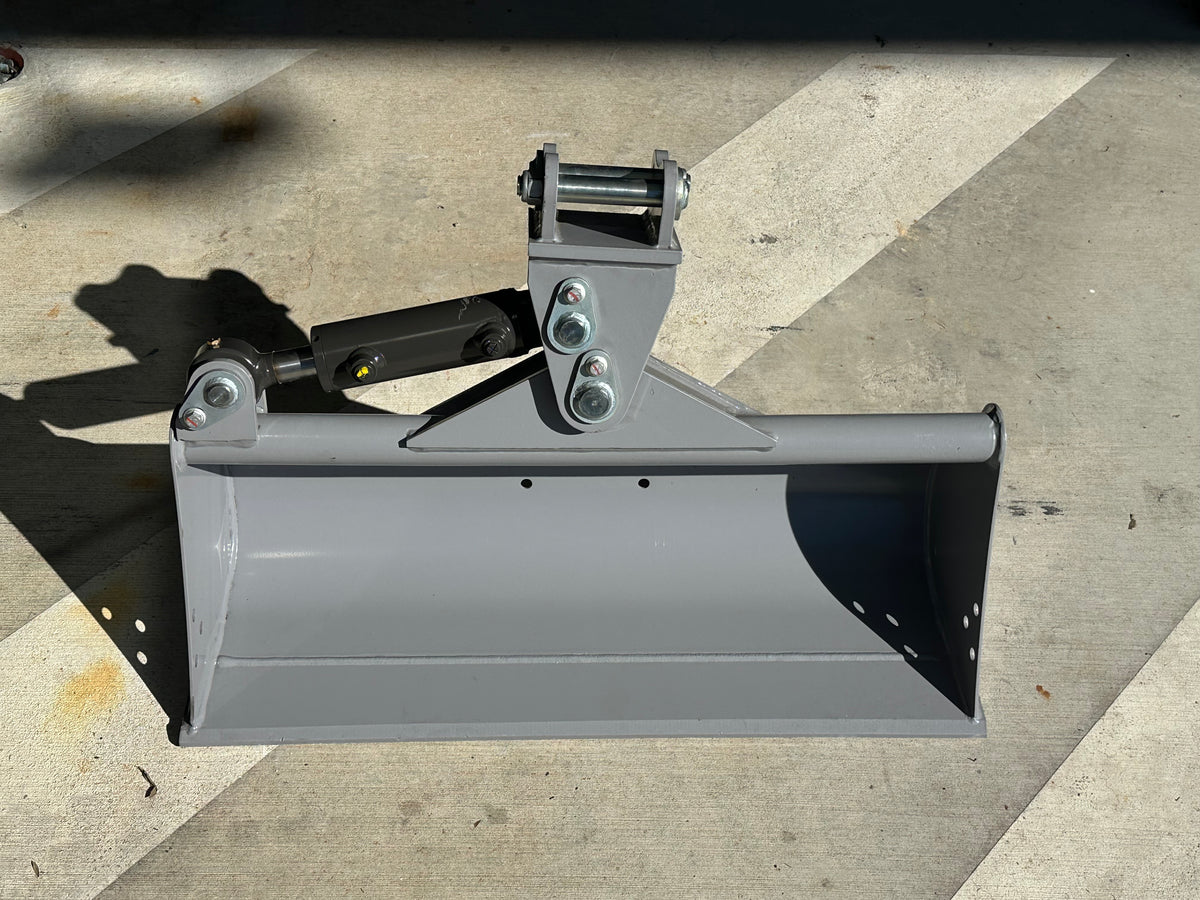

800MM TILTING MUD BUCKET

POST HOLE DIGGER HEAVY DUTY 200MM & 300MM AUGERS WITH REPLACEABLE TEETH

RIPPER

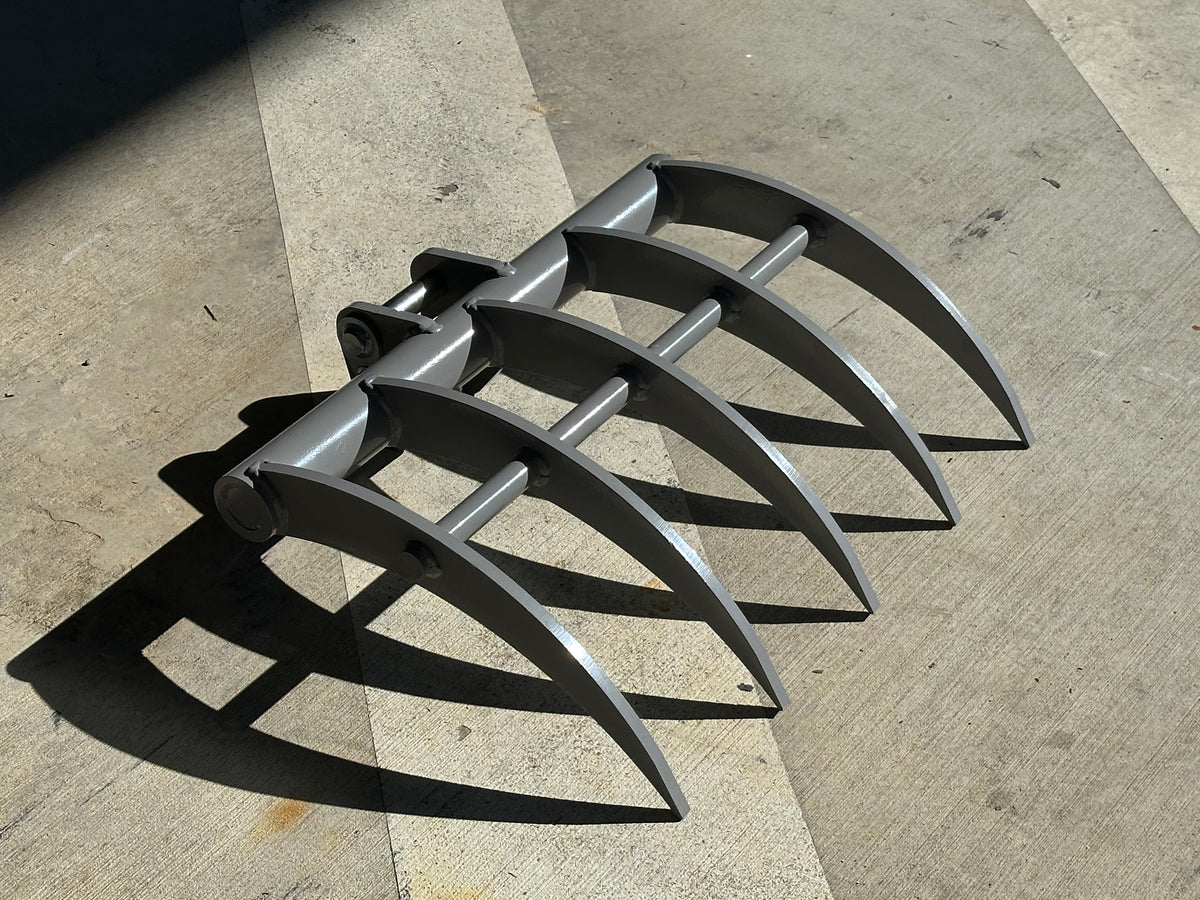

STICK RAKE

SPRING QUICK HITCH

HYDRUALIC THUMB GRAB

TOOL BOX & MANUALS

FILTER SET

FEATURES

" INDUSTRY LEADING MAX DIGGING DEPTH - 1900MM "

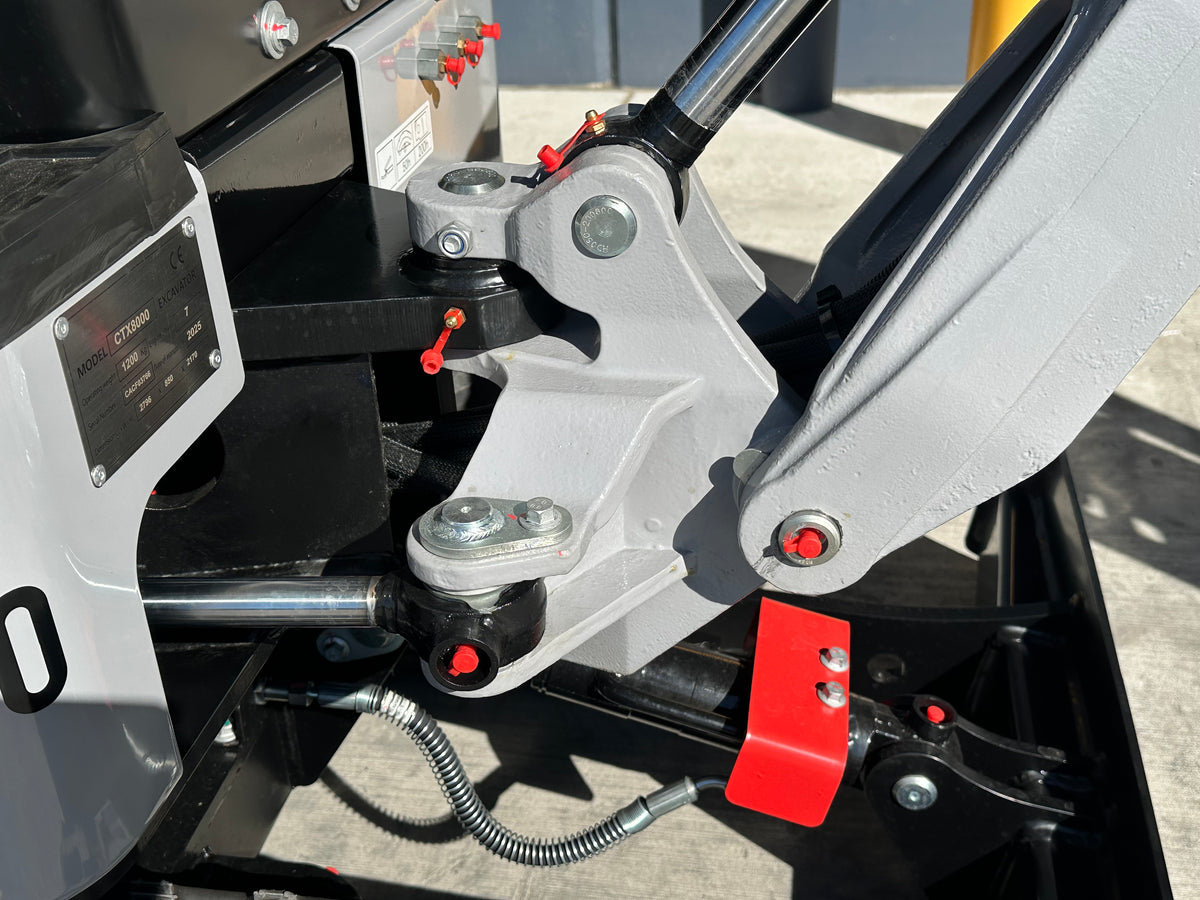

" SWING BOOM "

" 12kN / 1223kg BUCKET DIGGING FORCE

" OFFSET BOOM FOR SUPERIOR OPERATOR VISION "

" 1CYL KOOP DIESEL ENGINE "

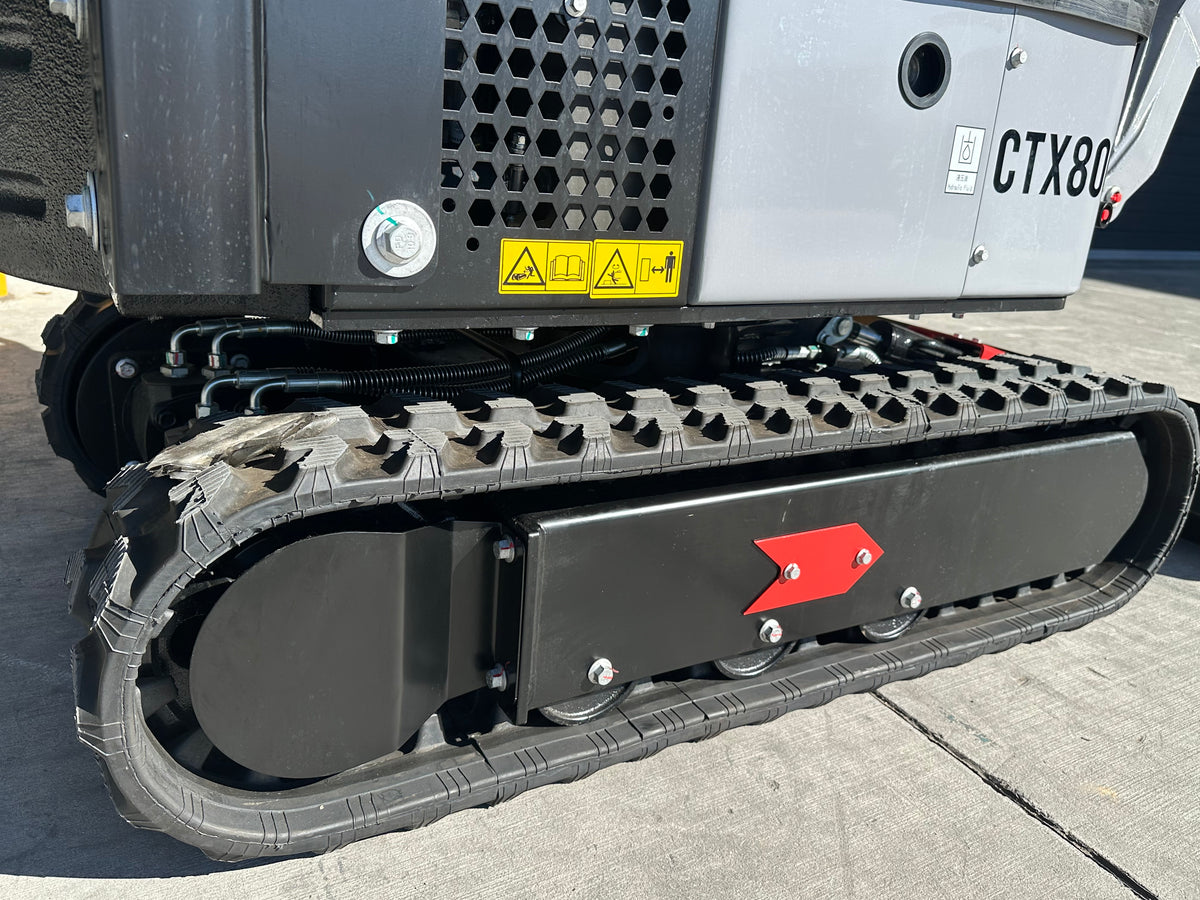

" 3 X RUBBER TRACK ROLLERS "

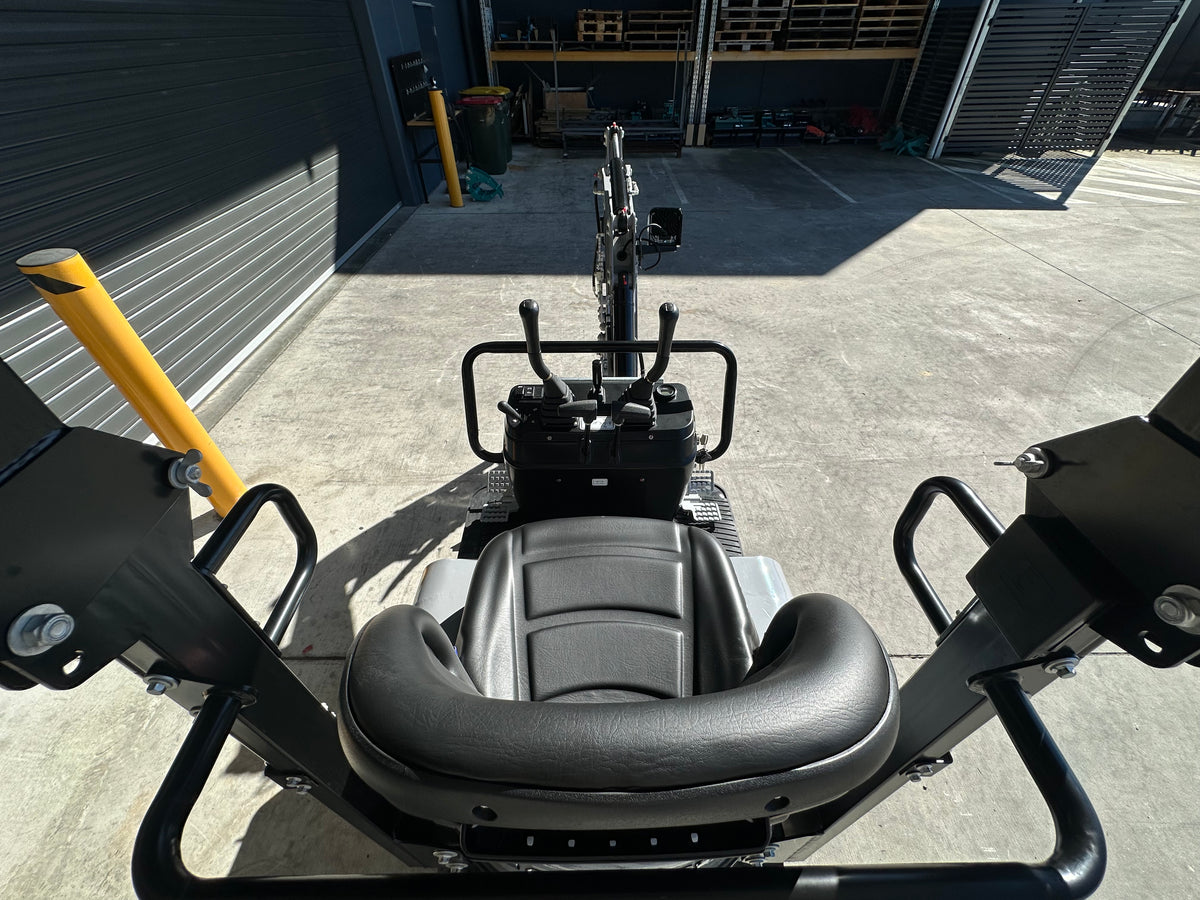

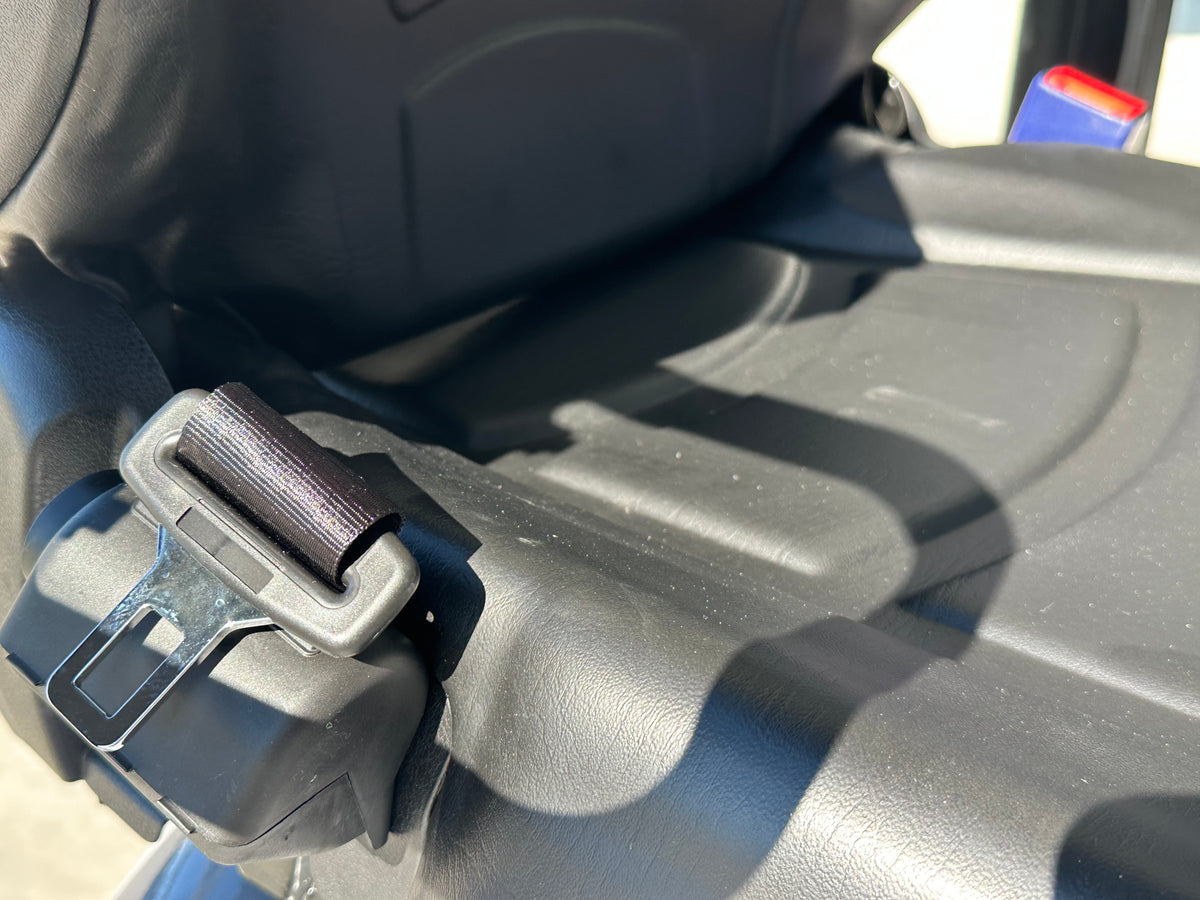

" LARGE OPERATORS PLATFORM "

" 8 YEARS IN THE AUSTRALIA MARKET "



OPTIONAL ATTACHMENTS :

- 800mm Mud Bucket

- 900mm Sieve Bucket

- Tilting Quick Hitch

- Trailers

- Rock Breaker


The HAIHONG CTX8000 is an entry level mini excavators offer versatility and robust features ideal for a wide range of tasks, from landscaping and construction to maintenance and clearing. With enhancements like swing boom and a protective hydraulic system, these machines ensure superior performance and durability. Their spacious operator area and added safety features, such as a foldable roll bar, make them not only efficient but also comfortable for prolonged use, catering to both hobby farmers and DIY enthusiasts alike.


SPECIFICATIONS

Model : CTX8000

Manufacturer : SHANDONG HAIHONG HEAVY INDUSTRY CO.,LTD.

Brand : HAIHONG

Operating Weight : 1100kg

Digging bucket capacity : 0.025cbm/100kg

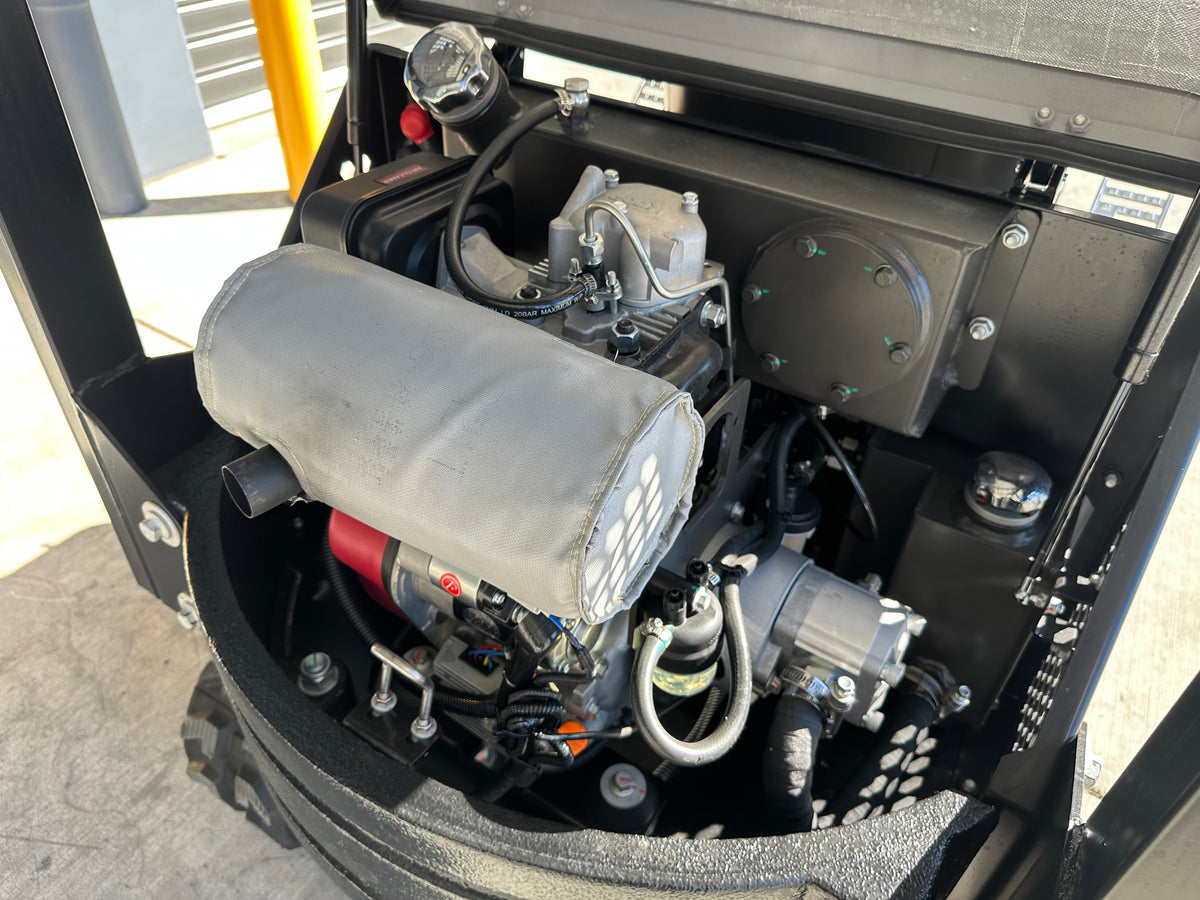

Engine : KOOP

Rated power : 12HP3600RPM

Displacement : 0.499 L

Bore stroke : 70x55

Main pump : CBK-F6.8

Pump Flow : 16L/min

Swing motor : SANYANG DMRS-200

Traveling motor : SANYANG 310

Travel speed : 2.2km/h





MAIN DIMENSIONS

Overall dimension( LxWxH) : 2550 x 1060 x 2170 mm

Wheelbase : 770 mm

Track width : 1060mm

Swing Boom angle : 52 degree

Total length of track : 1300mm

Individual Track width : 180 mm

Chassis ground clearance : 132 mm

Track height : 320 mm



OPERATING RANGE

Max. Vertical digging depth : 1900 mm

Max. Digging height : 2925 mm

Max. Dumping height : 2034 mm

Max. Digging radius on ground : 2703 mm

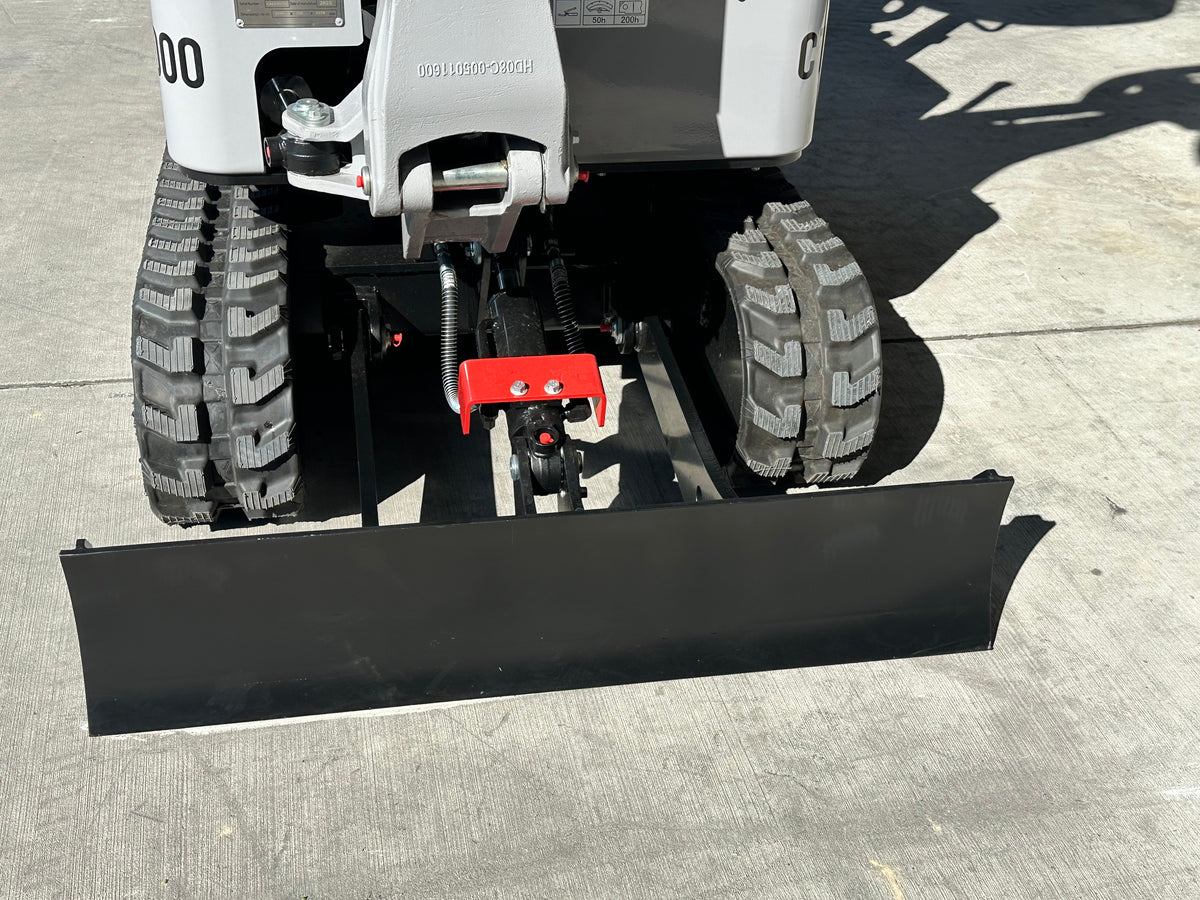

Max. Digging depth of bulldozer blade : 170 mm

Bucket Digging Force : 10.5kN



* Specifications and Prices are subject to change without notice.
